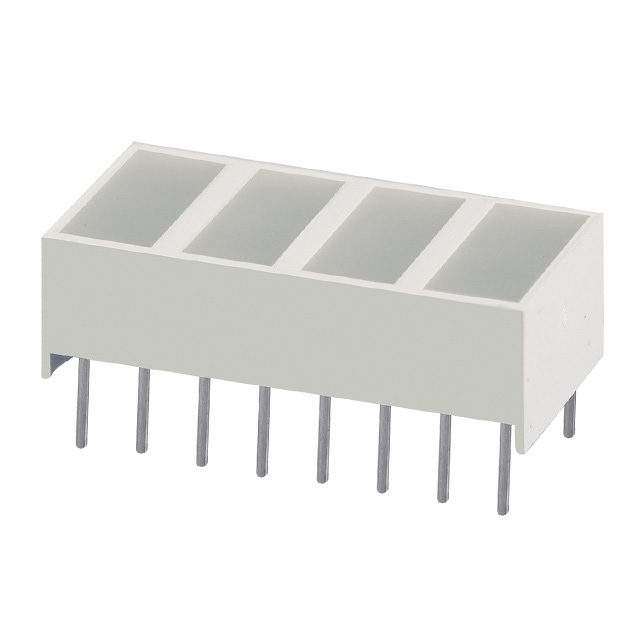

KB2720YW

Active

Kingbright

LED CBI 8.89X3.81MM QUAD YL VERT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KB2720YW

Active

Kingbright

LED CBI 8.89X3.81MM QUAD YL VERT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KB2720YW

Color	Yellow (x 4)
Configuration	DIP, 4 Wide, Bar
Current	30 mA
Lens Size [x]	8.89 mm
Lens Size [y]	3.81 mm
Lens Style	Rectangle with Flat Top
Lens Type	Diffused, White
Millicandela Rating	23 mcd
Mounting Type	Through Hole
Voltage Rating	2.1 V
Wavelength - Peak	590 nm

KB2720 Series

Part	Lens Style	Wavelength - Peak	Voltage Rating	Millicandela Rating	Lens Type	Lens Size [x]	Lens Size [y]	Configuration	Mounting Type	Current	Color
Kingbright KB2720YW	Rectangle with Flat Top	590 nm	2.1 V	23 mcd	Diffused White	8.89 mm	3.81 mm	4 Wide Bar DIP	Through Hole	30 mA	Yellow (x 4)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.93
		25	$ 1.96
		100	$ 1.51
		500	$ 1.36
		1000	$ 1.17
		2000	$ 1.11
		5000	$ 1.08

Description

General part information

KB2720 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 4 Wide, DIP Yellow (x 4) Diffused, White 2.1V 30mA Rectangle with Flat Top 8.89mm x 3.81mm Through Hole
