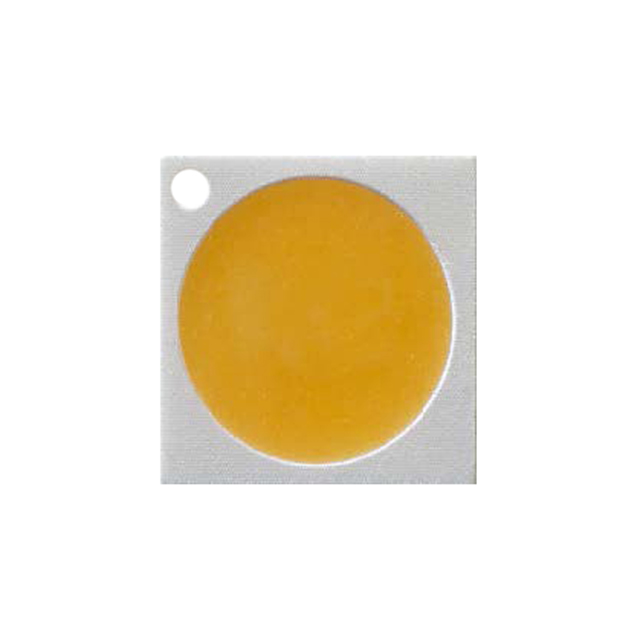

BXEM-30E-21H-3A-00-0-0

Obsolete

BRIDGELUX

LED GEN2 WARM WHT 3000K 3030

Search across all available documentation for this part.

Obsolete

BRIDGELUX

LED GEN2 WARM WHT 3000K 3030

Technical Specifications

Parameters and characteristics for this part

Specification	BXEM-30E-21H-3A-00-0-0

Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	400 mA
Current - Test	300 mA
Flux @ 85°C, Current - Test	105 lm
Height - Seated (Max) [Max]	0.024 in
Height - Seated (Max) [Max]	0.62 mm
Lumens/Watt @ Current - Test	117 lm/W
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	3030
Thermal Resistance of Package [custom]	12 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3 V

Part	Lumens/Watt @ Current - Test	Color	Viewing Angle	CRI (Color Rendering Index)	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Flux @ 85°C, Current - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Thermal Resistance of Package [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Current - Max [Max]	Current - Test	Mounting Type
BRIDGELUX BXEM-30E-21H-3A-00-0-0	117 lm/W	Warm White	120 °	80	1212	3030 Metric	3 V	105 lm	0.118 in	3 mm	3 mm	0.118 in	12 °C/W	0.024 in	0.62 mm	3030	400 mA	300 mA	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Gen2 White, Warm 3000K 3V 300mA 120° 1212 (3030 Metric)
