TES 5-2412WI

Active

Traco Power

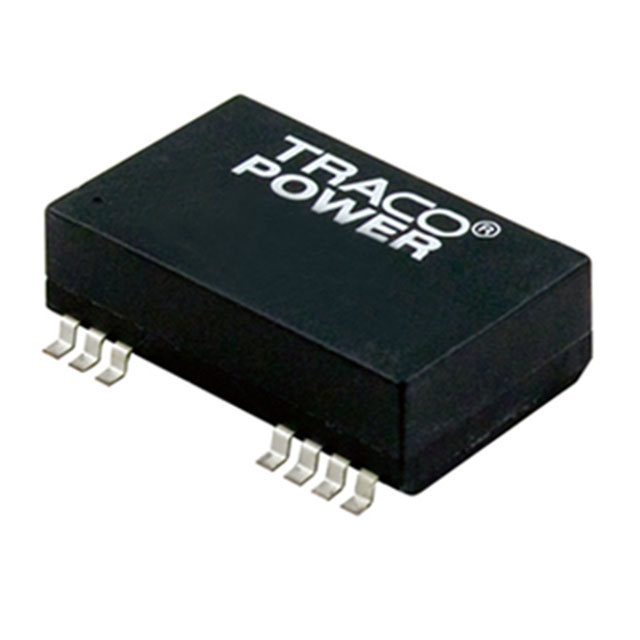

DC DC CONVERTER 12V 5W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TES 5-2412WI

Active

Traco Power

DC DC CONVERTER 12V 5W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TES 5-2412WI

Applications	ITE (Commercial)
Current - Output (Max) [Max]	420 mA
Efficiency	83 %
Features	Remote On/Off, SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-SMD Module, 14 Leads
Power (Watts)	5 W
Size / Dimension [x]	1.31 in
Size / Dimension [x]	33.4 mm
Size / Dimension [y]	0.81 in
Size / Dimension [y]	20.6 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

TES 5 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Isolation	Voltage - Output 1	Package / Case	Voltage - Input (Max) [Max]	Number of Outputs	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Features	Power (Watts)	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Traco Power TES 5-4813	85 °C	-40 °C	Isolated Module	1.5 kV	15 V	24-SMD Module 14 Leads	75 V	1	335 mA	36 V	85 %	ITE (Commercial)	1.31 in	0.4 "	0.81 in	33.4 mm	10.2 mm	20.6 mm	Surface Mount	Remote On/Off SCP	5 W
Traco Power TES 5-2412WI	71 °C	-40 °C	Isolated Module	1.5 kV	12 V	24-SMD Module 14 Leads	36 V	1	420 mA	9 V	83 %	ITE (Commercial)	1.31 in	0.4 "	0.81 in	33.4 mm	10.2 mm	20.6 mm	Surface Mount	Remote On/Off SCP	5 W
Traco Power TES 5-2413	85 °C	-40 °C	Isolated Module	1.5 kV	15 V	24-SMD Module 14 Leads	36 V	1	335 mA	18 V	85 %	ITE (Commercial)	1.31 in	0.4 "	0.81 in	33.4 mm	10.2 mm	20.6 mm	Surface Mount	Remote On/Off SCP	5 W
Traco Power TES 5-2411	85 °C	-40 °C	Isolated Module	1.5 kV	5 V	24-SMD Module 14 Leads	36 V	1	1 A	18 V		ITE (Commercial)	1.31 in	0.4 "	0.81 in	33.4 mm	10.2 mm	20.6 mm	Surface Mount	Remote On/Off SCP	5 W
Traco Power TES 5-4810WI	71 °C	-40 °C	Isolated Module	1.5 kV	3.3 V	24-SMD Module 14 Leads	75 V	1	1.2 A	18 V	76 %	ITE (Commercial)	1.31 in	0.4 "	0.81 in	33.4 mm	10.2 mm	20.6 mm	Surface Mount	Remote On/Off SCP	4 W
Traco Power TES 5-2412	85 °C	-40 °C	Isolated Module	1.5 kV	12 V	24-SMD Module 14 Leads	36 V	1	420 mA	18 V	85 %	ITE (Commercial)	1.31 in	0.4 "	0.81 in	33.4 mm	10.2 mm	20.6 mm	Surface Mount	Remote On/Off SCP	5 W
Traco Power TES 5-4823WI	71 °C	-40 °C	Isolated Module	1.5 kV	15 V	24-SMD Module 14 Leads	75 V	2		18 V	83 %	ITE (Commercial)	1.31 in	0.4 "	0.81 in	33.4 mm	10.2 mm	20.6 mm	Surface Mount	Remote On/Off SCP	5 W	-15 V	165 mA	165 mA
Traco Power TES 5-2410WI	71 °C	-40 °C	Isolated Module	1.5 kV	3.3 V	24-SMD Module 14 Leads	36 V	1	1.2 A	9 V	76 %	ITE (Commercial)	1.31 in	0.4 "	0.81 in	33.4 mm	10.2 mm	20.6 mm	Surface Mount	Remote On/Off SCP	4 W
Traco Power TES 5-2411WI	71 °C	-40 °C	Isolated Module	1.5 kV	5 V	24-SMD Module 14 Leads	36 V	1	1 A	9 V	80 %	ITE (Commercial)	1.31 in	0.4 "	0.81 in	33.4 mm	10.2 mm	20.6 mm	Surface Mount	Remote On/Off SCP	5 W
Traco Power TES 5-1223	85 °C	-40 °C	Isolated Module	1.5 kV	15 V	24-SMD Module 14 Leads	18 V	2		9 V	83 %	ITE (Commercial)	1.31 in	0.4 "	0.81 in	33.4 mm	10.2 mm	20.6 mm	Surface Mount	Remote On/Off SCP	5 W	-15 V	165 mA	165 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 43.10
		10	$ 37.38
		25	$ 36.15
		50	$ 35.24
		100	$ 34.36
		250	$ 33.22
		500	$ 29.74

Description

General part information

TES 5 Series

Isolated Module DC DC Converter 1 Output 12V 420mA 9V - 36V Input
