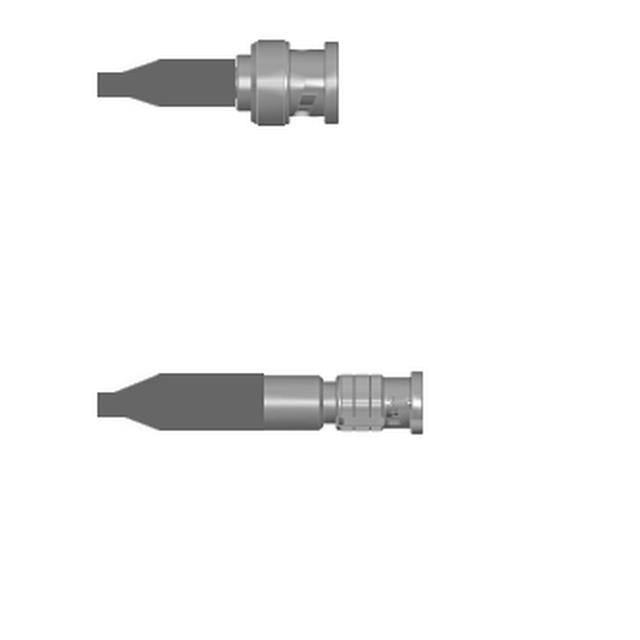

Q-61064000K001M

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC PLUG-PLG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-61064000K001M

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC PLUG-PLG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-61064000K001M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	HD-BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	Belden 4855R
Color	Black
Features	Shielded
Frequency - Max [Max]	12 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	75 Ohms
Style	BNC to HD-BNC

Q-610640 Series

Part	Style	1st Connector Mounting Type	2nd Connector Mounting Type	Length	Length	1st Contact Gender	2nd Connector	Cable Type	Frequency - Max [Max]	2nd Contact Gender	Color	Features	1st Connector	Overall Impedance	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-61064000K009i	BNC to HD-BNC	Free Hanging (In-Line)	Free Hanging (In-Line)	9 "	228.6 mm	Male	HD-BNC Plug	Belden 4855R	12 GHz	Male	Black	Shielded	BNC Plug	75 Ohms
Amphenol Custom Cable Q-61064000K001M	BNC to HD-BNC	Free Hanging (In-Line)	Free Hanging (In-Line)	39.4 in	1 m	Male	HD-BNC Plug	Belden 4855R	12 GHz	Male	Black	Shielded	BNC Plug	75 Ohms	3.3 ft
Amphenol Custom Cable Q-61064000K108i	BNC to HD-BNC	Free Hanging (In-Line)	Free Hanging (In-Line)	108 in	2.7 m	Male	HD-BNC Plug	Belden 4855R	12 GHz	Male	Black	Shielded	BNC Plug	75 Ohms	9 ft
Amphenol Custom Cable Q-61064000K048i	BNC to HD-BNC	Free Hanging (In-Line)	Free Hanging (In-Line)	48 in	1200 mm	Male	HD-BNC Plug	Belden 4855R	12 GHz	Male	Black	Shielded	BNC Plug	75 Ohms	4 ft
Amphenol Custom Cable Q-61064000K2.5M	BNC to HD-BNC	Free Hanging (In-Line)	Free Hanging (In-Line)	98.4 in	2.5 m	Male	HD-BNC Plug	Belden 4855R	12 GHz	Male	Black	Shielded	BNC Plug	75 Ohms	8.2 '
Amphenol Custom Cable Q-61064000K006i	BNC to HD-BNC	Free Hanging (In-Line)	Free Hanging (In-Line)	6 in	152.4 mm	Male	HD-BNC Plug	Belden 4855R	12 GHz	Male	Black	Shielded	BNC Plug	75 Ohms
Amphenol Custom Cable Q-61064000K1.5M	BNC to HD-BNC	Free Hanging (In-Line)	Free Hanging (In-Line)	59.1 in	1.5 m	Male	HD-BNC Plug	Belden 4855R	12 GHz	Male	Black	Shielded	BNC Plug	75 Ohms	4.9 ft
Amphenol Custom Cable Q-61064000K003M	BNC to HD-BNC	Free Hanging (In-Line)	Free Hanging (In-Line)	118.1 in	3 m	Male	HD-BNC Plug	Belden 4855R	12 GHz	Male	Black	Shielded	BNC Plug	75 Ohms	9.8 '
Amphenol Custom Cable Q-61064000K.25M	BNC to HD-BNC	Free Hanging (In-Line)	Free Hanging (In-Line)			Male	HD-BNC Plug	Belden 4855R	12 GHz	Male	Black	Shielded	BNC Plug	75 Ohms		9.843 "	250 mm
Amphenol Custom Cable Q-61064000K084i	BNC to HD-BNC	Free Hanging (In-Line)	Free Hanging (In-Line)	84 in	2.1 m	Male	HD-BNC Plug	Belden 4855R	12 GHz	Male	Black	Shielded	BNC Plug	75 Ohms	7 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 119.53
		25	$ 117.19
		50	$ 114.85
		100	$ 112.51
		250	$ 110.17

Description

General part information

Q-610640 Series

Cable Assembly Coaxial BNC to HD-BNC Belden 4855R 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
