4616-1
ActiveVector Electronics

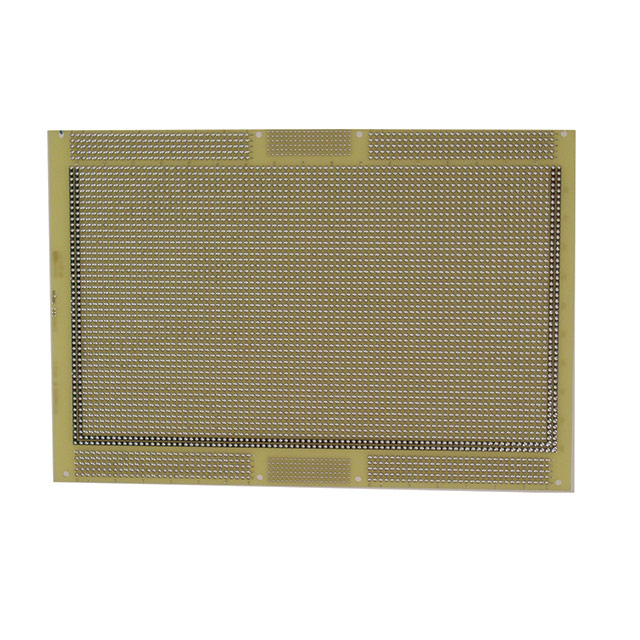

PCB, EUROCARD, PAD-PER-HOLE, EPOXY GLASS COMPOSITE, 1.57MM, 233.43MMX160MM
Deep-Dive with AI
Search across all available documentation for this part.
4616-1
ActiveVector Electronics
PCB, EUROCARD, PAD-PER-HOLE, EPOXY GLASS COMPOSITE, 1.57MM, 233.43MMX160MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4616-1 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 0.0625 in |
| Board Thickness | 1.57 mm |
| Circuit Pattern | Pad Per Hole (Round) |
| Hole Diameter | 0.042 " (inches) |
| Hole Diameter | 1.07 mm |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Plating | Plated Through Hole (PTH) |
| Proto Board Type | Plugboard, Hard Metric |
| Size / Dimension [x] | 233.4 mm |
| Size / Dimension [x] | 9.19 " |
| Size / Dimension [y] | 160 mm |
| Size / Dimension [y] | 6.3 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
4616 Series
Plugboard, Hard Metric Plated Through Hole (PTH) Pad Per Hole (Round) 0.100" (2.54mm)
