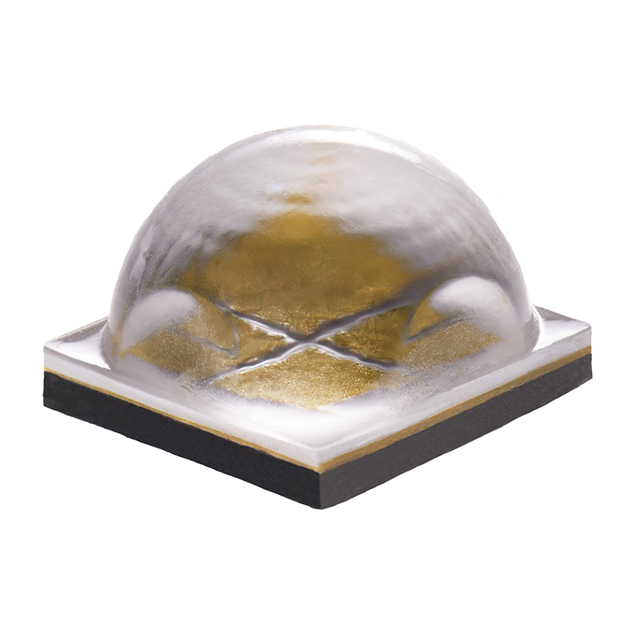

XHP50A-00-0000-0D0UF227H

Obsolete

Cree LED

LED XLAMP WARM WHT 2700K SMD

Deep-Dive with AI

Search across all available documentation for this part.

XHP50A-00-0000-0D0UF227H

Obsolete

Cree LED

LED XLAMP WARM WHT 2700K SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XHP50A-00-0000-0D0UF227H

CCT (K)	2700 K
Color	White, Warm
CRI (Color Rendering Index)	90
Current - Max	1.5 A, 3 A
Current - Test	1.4 A, 700 mA
Flux @ 85°C, Current - Test	705 lm
Flux @ 85°C, Current - Test [Max]	730 lm
Flux @ 85°C, Current - Test [Min]	680 lm
Height - Seated (Max) [Max] [z]	0.146 "
Height - Seated (Max) [Max] [z]	3.71 mm
Lumens/Watt @ Current - Test	84 lm/W
Mounting Type	Surface Mount
Package / Case	2020
Package / Case	5050 Metric
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	1.2 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	6 V, 12 V

XHP50A Series

...

Part	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	CRI (Color Rendering Index)	Thermal Resistance of Package [custom]	Package / Case	Package / Case	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Current - Max	Viewing Angle	Supplier Device Package	Current - Test	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Min]	Color	Mounting Type
Cree LED XHP50A-00-0000-0D0UF435H	6 V 12 V	0.146 "	3.71 mm	90	1.2 °C/W	2020	5050 Metric	3500 K	0.197 in	5 mm	0.197 "	5 mm	90 lm/W	1.5 A 3 A	120 °	SMD	1.4 A 700 mA	780 lm	755 lm	730 lm	Warm White	Surface Mount
Cree LED XHP50A-00-0000-0D0UG40CB	6 V 12 V	0.146 "	3.71 mm	90	1.2 °C/W	2020	5050 Metric	6500 K	0.197 in	5 mm	0.197 "	5 mm	104 lm/W	1.5 A 3 A	120 °	SMD	1.4 A 700 mA		870 lm		Cool White	Surface Mount
Cree LED XHP50A-00-0000-0D0UF227H	6 V 12 V	0.146 "	3.71 mm	90	1.2 °C/W	2020	5050 Metric	2700 K	0.197 in	5 mm	0.197 "	5 mm	84 lm/W	1.5 A 3 A	120 °	SMD	1.4 A 700 mA	730 lm	705 lm	680 lm	Warm White	Surface Mount
Cree LED XHP50A-01-0000-0D0HG440G	6 V 12 V	0.146 "	3.71 mm	80	1.2 °C/W	2020	5050 Metric	4000 K	0.197 in	5 mm	0.197 "	5 mm	104 lm/W	1.5 A 3 A	120 °	SMD	1.4 A 700 mA		870 lm		Neutral White	Surface Mount
Cree LED XHP50A-00-0000-0D0HH435H	6 V 12 V	0.146 "	3.71 mm	80	1.2 °C/W	2020	5050 Metric	3500 K	0.197 in	5 mm	0.197 "	5 mm	120 lm/W	1.5 A 3 A	120 °	SMD	1.4 A 700 mA	1040 lm	1005 lm	970 lm	Warm White	Surface Mount
Cree LED XHP50A-01-0000-0D0UF250G	6 V 12 V	0.146 "	3.71 mm	90	1.2 °C/W	2020	5050 Metric		0.197 in	5 mm	0.197 "	5 mm	84 lm/W	1.5 A 3 A	120 °	SMD	1.4 A 700 mA	730 lm	705 lm	680 lm	Cool White	Surface Mount
Cree LED XHP50A-01-0000-0D00J20E3	6 V 12 V	0.146 "	3.71 mm		1.2 °C/W	2020	5050 Metric	5000 K	0.197 in	5 mm	0.197 "	5 mm	129 lm/W	1.5 A 3 A	120 °	SMD	1.4 A 700 mA		1080 lm		Cool White	Surface Mount
Cree LED XHP50A-01-0000-0D0UF235G	6 V 12 V	0.146 "	3.71 mm	90	1.2 °C/W	2020	5050 Metric	3500 K	0.197 in	5 mm	0.197 "	5 mm	84 lm/W	1.5 A 3 A	120 °	SMD	1.4 A 700 mA	730 lm	705 lm	680 lm	Warm White	Surface Mount
Cree LED XHP50A-00-0000-0D00J20CB	6 V 12 V	0.146 "	3.71 mm		1.2 °C/W	2020	5050 Metric	6500 K	0.197 in	5 mm	0.197 "	5 mm	129 lm/W	1.5 A 3 A	120 °	SMD	1.4 A 700 mA		1080 lm		Cool White	Surface Mount
Cree LED XHP50A-01-0000-0D0BJ20DT	6 V 12 V	0.146 "	3.71 mm	70	1.2 °C/W	2020	5050 Metric	7000 K	0.197 in	5 mm	0.197 "	5 mm	129 lm/W	1.5 A 3 A	120 °	SMD	1.4 A 700 mA		1080 lm		Cool White	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XHP50A Series

LED Lighting Xlamp® XHP50 White, Warm 2700K 2-Step MacAdam Ellipse 6V, 12V 1.4A, 700mA 120° 2020 (5050 Metric)

Documents

Technical documentation and resources

No documents available
