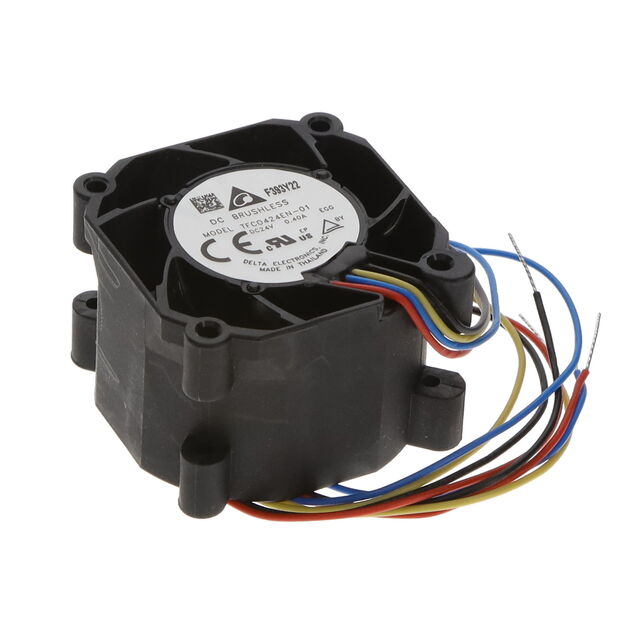

TFC0424EN-01EGG

NRND

Delta Electronics

FAN AXIAL 40X28MM 24VDC WIRE

Search across all available documentation for this part.

NRND

Delta Electronics

FAN AXIAL 40X28MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	TFC0424EN-01EGG

Air Flow	21.1 CFM
Air Flow	0.591 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.25 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP67 - Dust Tight, Waterproof
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	55 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	6 W
RPM	18300 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	1.979 in H2O
Static Pressure	492.9 Pa
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Weight	0.115 lb
Weight	52.16 g
Width [y]	28 mm

Part	Ingress Protection	Lifetime @ Temp.	Weight	Weight	Noise	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Air Flow	Air Flow	Static Pressure	Static Pressure	Power (Watts)	Fan Type	Bearing Type	Approval Agency	Material - Frame	Voltage - Rated	Width [y]	Features	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	RPM	Material - Blade	Termination
Delta Electronics TFC0424EN-01EGG	IP67 - Dust Tight Waterproof	70000 Hrs	0.115 lb	52.16 g	55 dB	70 °C	70 °C	-10 °C	-10 °C	0.25 A	21.1 CFM	0.591 m³/min	1.979 in H2O	492.9 Pa	6 W	Tubeaxial	Ball	CE cURus TUV	Plastic	24 VDC	28 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	40 mm	Square	40 mm	18300 RPM	Plastic	4 Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 21.1 CFM (0.591m³/min) 4 Wire Leads
