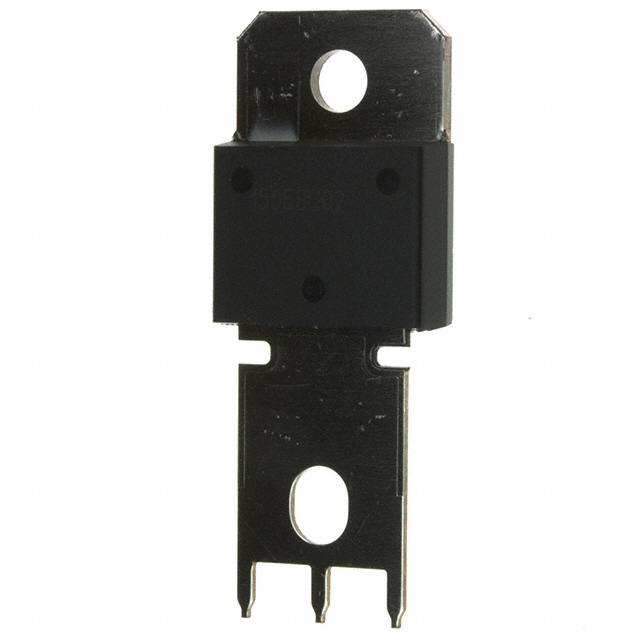

VS-100BGQ045HF4

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 45V 100A POWERTAB

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 45V 100A POWERTAB

Technical Specifications

Parameters and characteristics for this part

Specification	VS-100BGQ045HF4

Capacitance @ Vr, F	2700 pF
Current - Average Rectified (Io)	100 A
Current - Reverse Leakage @ Vr	1 mA
Grade	Automotive
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	PowerTab®
Qualification	AEC-Q101
Speed	200 mA, 500 ns
Supplier Device Package	PowerTab®
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	45 V
Voltage - Forward (Vf) (Max) @ If	770 mV

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Grade	Voltage - Forward (Vf) (Max) @ If	Qualification	Capacitance @ Vr, F	Current - Average Rectified (Io)	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Technology	Speed	Package / Case
Vishay General Semiconductor - Diodes Division VS-100BGQ045HF4	150 °C	-55 °C	Chassis Mount	Automotive	770 mV	AEC-Q101	2700 pF	100 A	PowerTab®	45 V	1 mA	Schottky	200 mA 500 ns	PowerTab®

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 45 V 100A Chassis Mount PowerTab®

Technical documentation and resources

No documents available
