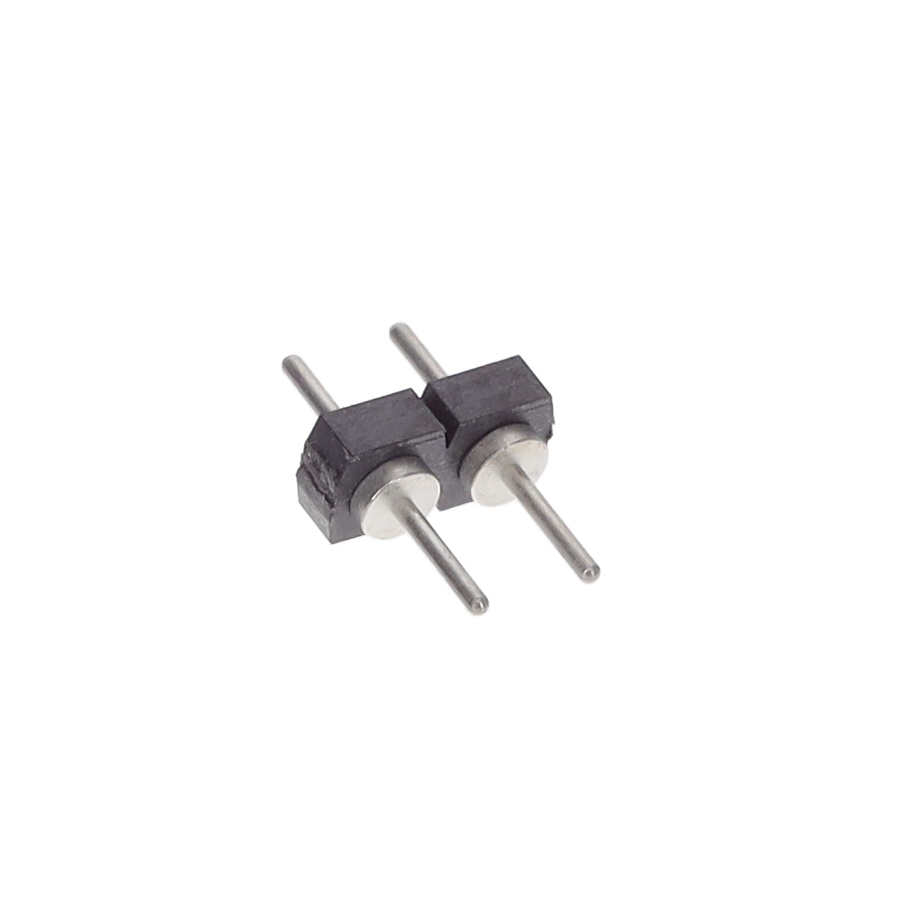

BBL-102-T-E

Active

Samtec Inc.

CONN HEADER LOPRO 2POS .100 TIN

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER LOPRO 2POS .100 TIN

Technical Specifications

Parameters and characteristics for this part

Specification	BBL-102-T-E

Connector Type	Header
Contact Finish - Post	Nickel
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.07 in
Insulation Height	1.78 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	7.62 mm
Overall Contact Length	0.3 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

Part	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Connector Type	Fastening Type	Insulation Height	Insulation Height	Number of Rows	Number of Positions	Contact Shape	Insulation Material	Shrouding	Mounting Type	Insulation Color	Number of Positions Loaded	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Samtec Inc. BBL-102-T-E	3.18 mm	0.125 in	Nickel	1.27 µm	50 µin	Solder	-55 °C	125 °C	Male Pin	7.62 mm	0.3 in	0.1 in	2.54 mm	Header	Push-Pull	0.07 in	1.78 mm	1	2	Circular	Liquid Crystal Polymer (LCP)	Unshrouded	Through Hole	Black	All
Samtec Inc. BBL-102-G-E	3.18 mm	0.125 in	Nickel	1.27 µm	50 µin	Solder	-55 °C	125 °C	Male Pin	7.62 mm	0.3 in	0.1 in	2.54 mm	Header	Push-Pull	0.07 in	1.78 mm	1	2	Circular	Liquid Crystal Polymer (LCP)	Unshrouded	Through Hole	Black	All	Gold	0.51 µm	20 µin
