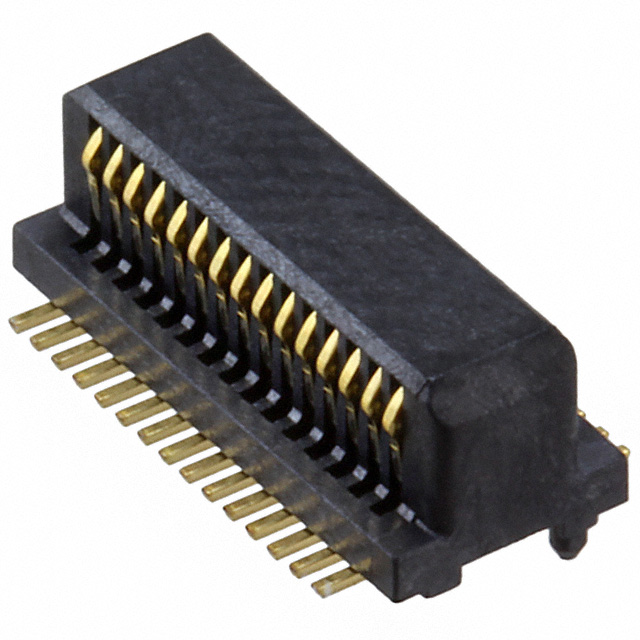

WR-30SB-VF-N1

Active

JAE Electronics

CONN RCPT 30POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WR-30SB-VF-N1

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	4 mm, 6 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Contact Finish	Number of Rows	Height Above Board	Height Above Board	Connector Type	Mounting Type	Features	Number of Positions	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]
JAE Electronics WR-30SB-VF-N1	Gold	2	3.25 mm	0.128 in	Center Strip Contacts Receptacle	Surface Mount	Board Guide	30	4 mm 5 mm 6 mm	4 Áin	0.1 Ám	0.5 mm	0.02 in
JAE Electronics WR-30SB-VFH30-N1-R1000	Gold	2	6.25 mm	0.246 in	Center Strip Contacts Receptacle	Surface Mount	Board Guide	30	7 mm 8 mm 9 mm	4 Áin	0.1 Ám	0.5 mm	0.02 in
JAE Electronics WR-30SB-VFH30-N1	Gold	2	6.25 mm	0.246 in	Center Strip Contacts Receptacle	Surface Mount	Board Guide	30	7 mm 8 mm 9 mm	4 Áin	0.1 Ám	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	209	$ 2.42

General part information

30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
