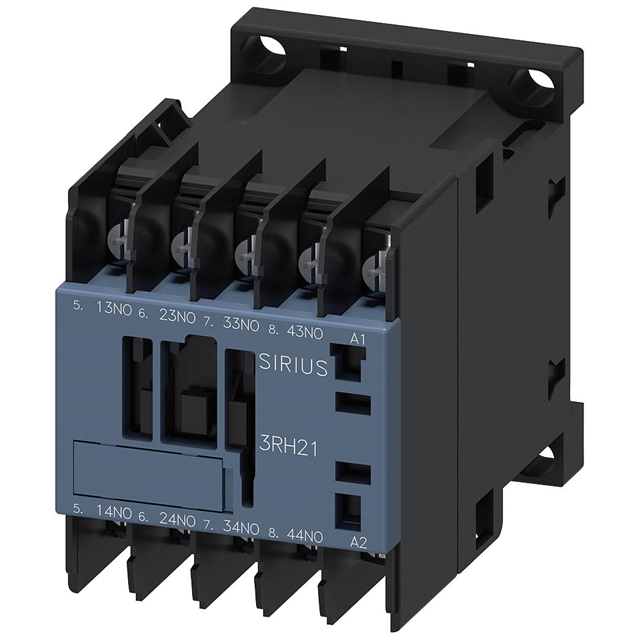

3RH21404AN60

Active

Siemens

CONTACTOR RELAY 4NO AC 200V RING

Search across all available documentation for this part.

Active

Siemens

CONTACTOR RELAY 4NO AC 200V RING

Technical Specifications

Parameters and characteristics for this part

Part	Contact Rating (Current)	Contact Form	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Operate Time	Mounting Type	Coil Power	Coil Voltage [Min]	Coil Voltage [Max]	Release Time	Switching Voltage	Features	Must Operate Voltage	Coil Voltage
Siemens 3RH21404AN60	10 A	4PST-NO (4 Form A)	Screw Terminal	-25 °C	60 °C	33 ms	Chassis Mount DIN Rail	37 VA	200 VAC/DC	220 VAC/DC	15 ms	690 VAC	Auxiliary Contacts
Siemens 3RH21404BW40	10 A	4PST-NO (4 Form A)	Screw Terminal	-25 °C	60 °C	100 ms	Chassis Mount DIN Rail	4 W			13 ms	690 VAC	Auxiliary Contacts	38.4 VDC	48 VDC
Siemens 3RH21404BB40	10 A	4PST-NO (4 Form A)	Screw Terminal	-25 °C	60 °C	100 ms	Chassis Mount DIN Rail	4 W			13 ms	690 VAC	Auxiliary Contacts	19.2 VDC	24 VDC
Siemens 3RH21404KB40	10 A	4PST-NO (4 Form A)	Screw Terminal	-25 °C	60 °C	130 ms	Chassis Mount DIN Rail	2.8 W			20 ms	690 VAC	Auxiliary Contacts	16.8 VDC	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 108.15
