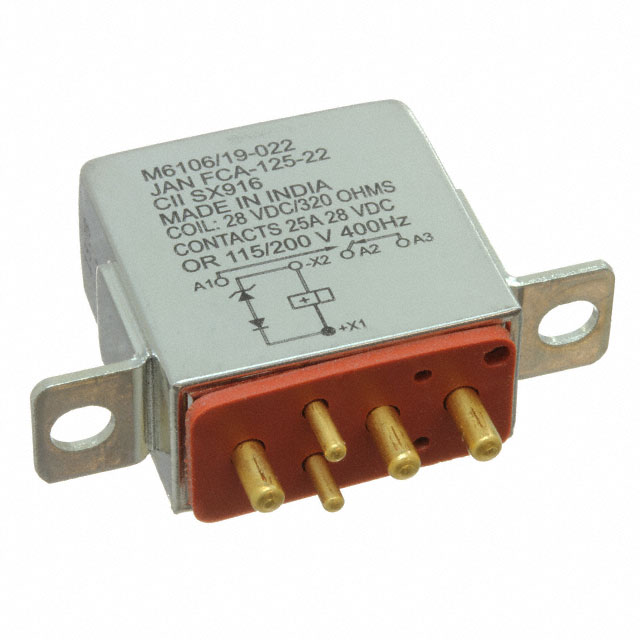

FCA-125-22
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE SPDT 25A 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FCA-125-22
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE SPDT 25A 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FCA-125-22 |
|---|---|
| Coil Current | 87.5 mA |
| Coil Resistance | 320 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 28 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 25 A |
| Features | Diode |
| Load - Max Switching | 700 W, 2875 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 13.5 VDC |
| Must Release Voltage | 2.3 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -70 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | Sealed - Hermetically |
| Switching Voltage | 28 VDC, 115 VAC |
| Termination Style | PC Pin |
1617748 Series
| Part | Contact Material | Contact Form | Contact Rating (Current) | Release Time | Termination Style | Coil Voltage | Coil Resistance | Relay Type | Features | Seal Rating | Load - Max Switching | Coil Current | Operate Time | Must Release Voltage | Mounting Type | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Switching Voltage | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | Silver Cadmium Oxide (AgCdO) | SPDT (1 Form C) | 25 A | 50 ms | PC Pin | 115 VAC | 2875 Ohms | General Purpose | Diode | Sealed - Hermetically | 700 W 2875 VA | 40 mA | 15 ms | 5 VAC | Chassis Mount | Non Latching | 125 °C | -70 °C | 90 VAC | 28 VDC 115 VAC | ||
TE Connectivity Aerospace, Defense and Marine | Silver Cadmium Oxide (AgCdO) | SPDT (1 Form C) | 25 A | 10 ms | Solder Hook | 28 VDC | 320 Ohms | General Purpose | Diode | Sealed - Hermetically | 700 W 2875 VA | 87.5 mA | 10 ms | 1.5 VDC | Chassis Mount | Non Latching | 125 °C | -70 °C | 18 VDC | 28 VDC 115 VAC | ||
TE Connectivity Aerospace, Defense and Marine | Silver Cadmium Oxide (AgCdO) | SPDT (1 Form C) | 25 A | 10 ms | PC Pin | 28 VDC | 320 Ohms | General Purpose | Diode | Sealed - Hermetically | 700 W 2875 VA | 87.5 mA | 10 ms | 2.3 VDC | Chassis Mount | Non Latching | 125 °C | -70 °C | 13.5 VDC | 28 VDC 115 VAC | ||
TE Connectivity Aerospace, Defense and Marine | Silver Cadmium Oxide (AgCdO) | SPDT (1 Form C) | 25 A | 10 ms | PC Pin | 28 VDC | 320 Ohms | General Purpose | Sealed - Hermetically | 700 W 2875 VA | 875 mA | 10 ms | 2.3 VDC | Chassis Mount | Non Latching | 125 °C | -70 °C | 13.5 VDC | 28 VDC 115 VAC | |||
TE Connectivity Aerospace, Defense and Marine | Silver Cadmium Oxide (AgCdO) | DPDT (2 Form C) | 10 A | General Purpose | Sealed - Hermetically | Non Latching | 125 °C | -70 °C | ||||||||||||||
TE Connectivity Aerospace, Defense and Marine | Silver Cadmium Oxide (AgCdO) | DPDT (2 Form C) | 10 A | 10 ms | PC Pin | 28 VDC | 320 Ohms | General Purpose | Diode | Sealed - Hermetically | 87.5 mA | 10 ms | 1.5 VDC | Chassis Mount | Non Latching | 125 °C | -70 °C | 18 VDC | 28 VDC 115 VAC | |||
TE Connectivity Aerospace, Defense and Marine | Silver Cadmium Oxide (AgCdO) | DPDT (2 Form C) | 10 A | 10 ms | PC Pin | 20 Ohms | General Purpose | Diode | Sealed - Hermetically | 300 mA | 10 ms | 0.3 VDC | Chassis Mount | Non Latching | 125 °C | -70 °C | 4.5 VDC | 28 VDC 115 VAC | ||||
TE Connectivity Aerospace, Defense and Marine | Silver Cadmium Oxide (AgCdO) | SPDT (1 Form C) | 25 A | PC Pin | General Purpose | Sealed - Hermetically | 700 W 2875 VA | Chassis Mount | Non Latching | 125 °C | -70 °C | 28 VDC 115 VAC | ||||||||||
TE Connectivity Aerospace, Defense and Marine | Silver Cadmium Oxide (AgCdO) | SPDT (1 Form C) | 25 A | 10 ms | Solder Hook | 28 VDC | 320 Ohms | General Purpose | Sealed - Hermetically | 700 W 2875 VA | 875 mA | 10 ms | 2.3 VDC | Chassis Mount | Non Latching | 125 °C | -70 °C | 13.5 VDC | 28 VDC 115 VAC | Military | MIL-R-6106/19 | |
TE Connectivity Aerospace, Defense and Marine | Silver Cadmium Oxide (AgCdO) | SPDT (1 Form C) | 25 A | 10 ms | Solder Hook | 28 VDC | 320 Ohms | General Purpose | Diode | Sealed - Hermetically | 700 W 2875 VA | 87.5 mA | 10 ms | 1.5 VDC | Chassis Mount | Non Latching | 125 °C | -70 °C | 18 VDC | 28 VDC 115 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 251.28 | |
| 10 | $ 234.53 | |||
| 25 | $ 226.15 | |||
Description
General part information
1617748 Series
General Purpose Relay SPDT (1 Form C) 28VDC Coil Chassis Mount
