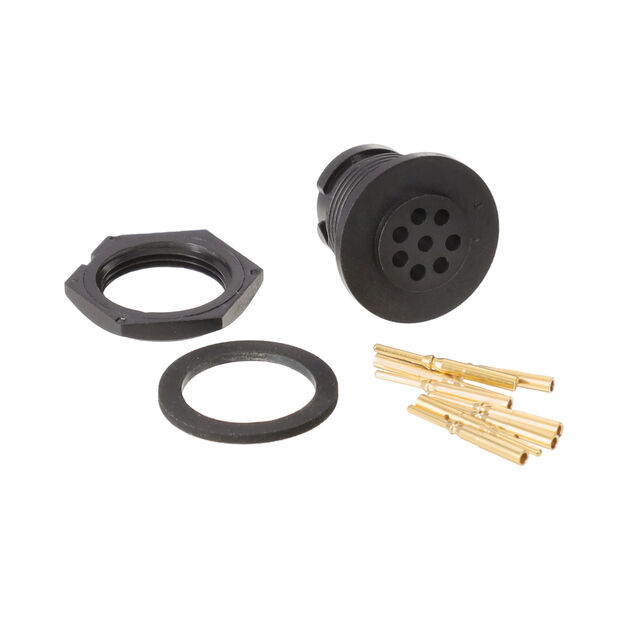

W7280-8PG-P-300

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	W7280-8PG-P-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	300 VAC

Part	Contact Finish - Mating	Number of Positions	Connector Type	Applications	Backshell Material, Plating	Contact Material	Voltage Rating	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Shielding	Primary Material	Orientation	Current Rating (Amps)	Fastening Type	Ingress Protection	Mounting Feature	Features	Termination
Conxall/Switchcraft W7280-8PG-P-300	Gold	8	Male Pins Receptacle	Automotive Communication Systems Instrumentation	Thermoplastic	Copper Alloy	300 VAC	Thermoplastic	85 °C	-40 °C	Black	Unshielded	Plastic	Keyed	Varies by Wire Gauge	Bayonet Lock	IP66 IP67 IP68	Bulkhead - Front Side Nut	UV Resistant	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Male Pins Crimp
