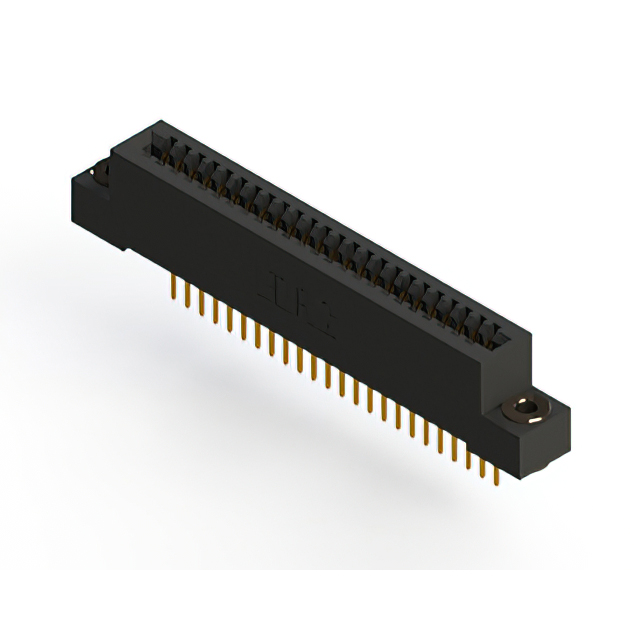

892-024-523-103
ActiveEDAC Inc.
CONN EDGE SINGLE FML 24POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-024-523-103
ActiveEDAC Inc.
CONN EDGE SINGLE FML 24POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-024-523-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 24 |
| Number of Positions/Bay/Row [custom] | 24 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
892-024 Series
...
| Part | Number of Positions | Gender | Flange Feature | Contact Material | Termination Rows | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Positions/Bay/Row [custom] | Contact Type | Card Type | Contact Finish | Termination | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 24 | Female | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 2 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 2 | 125 °C | -40 °C | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Dual | 12 | Cantilever | Non Specified - Dual Edge | Gold | Solder | ||
EDAC Inc. | 24 | Female | Floating Bobbin Flush Mount | Copper Alloy | 1 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 °C | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Single | 24 | Cantilever | Non Specified - Single Edge | Gold | Solder | 0.116 in | 2.95 mm |
EDAC Inc. | 24 | Female | Floating Bobbin Flush Mount | Copper Alloy | 1 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 °C | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Single | 24 | Cantilever | Non Specified - Single Edge | Gold | Solder | 0.116 in | 2.95 mm |
EDAC Inc. | 24 | Female | Flush Mount Top Opening Unthreaded | Copper Alloy | 1 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 °C | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Single | 24 | Cantilever | Non Specified - Single Edge | Gold | Solder | 0.128 " | 3.25 mm |
EDAC Inc. | 24 | Female | Flush Mount Top Opening Unthreaded | Copper Alloy | 2 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 2 | 125 °C | -40 °C | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Dual | 12 | Cantilever | Non Specified - Dual Edge | Gold | Wire Wrap | 0.156 in | 3.96 mm |
EDAC Inc. | 24 | Female | Flush Mount Side Opening Unthreaded | Copper Alloy | 1 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 °C | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Single | 24 | Cantilever | Non Specified - Single Edge | Gold | Wire Wrap | 0.128 " | 3.25 mm |
EDAC Inc. | 24 | Female | Flush Mount Top Opening Unthreaded | Copper Alloy | 1 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 1 | 125 °C | -40 °C | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Single | 24 | Cantilever | Non Specified - Single Edge | Gold | Solder | 0.128 " | 3.25 mm |
EDAC Inc. | 24 | Female | Flush Mount Side Opening Unthreaded | Copper Alloy | 2 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 2 | 125 °C | -40 °C | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Dual | 12 | Cantilever | Non Specified - Dual Edge | Gold | Wire Wrap | 0.128 " | 3.25 mm |
EDAC Inc. | 24 | Female | Flush Mount Top Opening Unthreaded | Copper Alloy | 2 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 2 | 125 °C | -40 °C | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Dual | 12 | Cantilever | Non Specified - Dual Edge | Gold | Solder | 0.128 " | 3.25 mm |
EDAC Inc. | 24 | Female | Flush Mount Top Opening Unthreaded | Copper Alloy | 2 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 2 | 125 °C | -40 °C | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Dual | 12 | Cantilever | Non Specified - Dual Edge | Gold | Wire Wrap | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 101.35 | |
Description
General part information
892-024 Series
24 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
