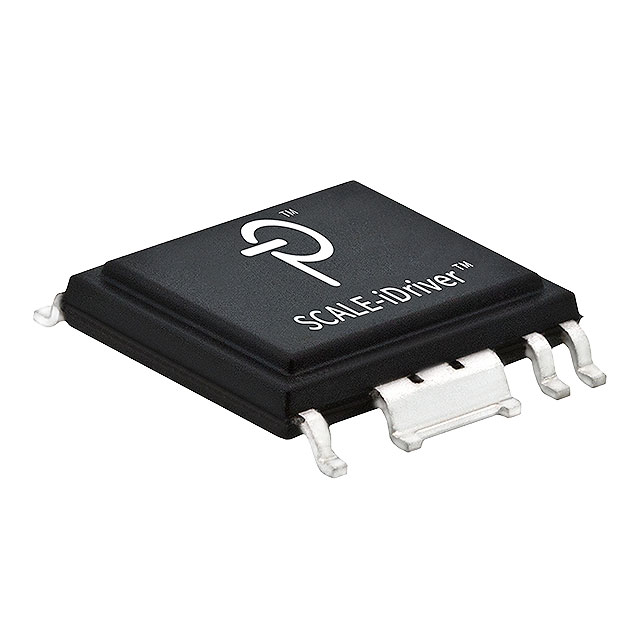

SID1112K

Active

Power Integrations

DGT ISO 5KV 1CH GT DVR ESOP-R16B

Search across all available documentation for this part.

Active

Power Integrations

DGT ISO 5KV 1CH GT DVR ESOP-R16B

Technical Specifications

Parameters and characteristics for this part

Specification	SID1112K

Approval Agency	VDE
Current - Output High, Low [custom]	480 mA
Current - Output High, Low [custom]	520 mA
Current - Peak Output	1 A
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case [custom]	16-PowerSOIC
Package / Case [custom]	8.89 mm, 0.35 in
Package / Case [custom]	15
Propagation Delay tpLH / tpHL (Max) [custom]	330 ns
Propagation Delay tpLH / tpHL (Max) [custom]	340 ns
Rise / Fall Time (Typ)	1.125 µs, 1.125 µs
Supplier Device Package	eSOP-R16B
Technology	Magnetic Coupling
Voltage - Output Supply [Max]	28 V
Voltage - Output Supply [Min]	22 V

Part	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Rise / Fall Time (Typ)	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Current - Peak Output	Technology	Mounting Type	Package / Case [custom]	Package / Case [custom]	Package / Case [custom]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Supplier Device Package
Power Integrations SID1112K	28 V	22 V	1.125 µs 1.125 µs	VDE	125 °C	-40 °C	1	330 ns	340 ns	1 A	Magnetic Coupling	Surface Mount	16-PowerSOIC	0.35 in 8.89 mm	15	480 mA	520 mA	eSOP-R16B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1A Gate Driver Magnetic Coupling 5000Vrms 1 Channel eSOP-R16B
