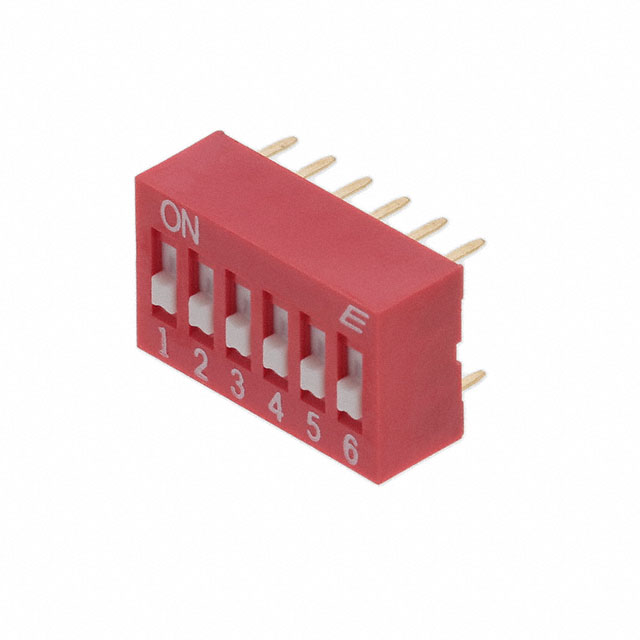

KAS1106RT

Active

E-Switch

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	KAS1106RT

Actuator Level	Flush, Recessed
Actuator Type	Slide (Standard)
Body Material	Polybutylene Terephthalate (PBT), Glass Filled
Circuit	SPST
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Features	Tape Seal
Height Above Board	6 mm
Height Above Board	0.236 in
Length [x]	16.61 mm
Length [x]	0.654 in
Mechanical Life	2000 Cycles
Mounting Type	Through Hole
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	True

Part	Mounting Type	Body Material	Contact Finish	Number of Positions	Termination Style	Features	Actuator Type	Circuit	Actuator Level	Current Rating (Amps)	Voltage Rating	Mechanical Life	Contact Material	Electrical Life	Pitch [x]	Pitch	Pitch [x]	Length [x]	Length [x]	Height Above Board	Height Above Board	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board
E-Switch KAS1106RT	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Gold	6	PC Pin	Tape Seal	Slide (Standard)	SPST	Flush Recessed	25 mA	24 VDC	2000 Cycles	Phosphor Bronze	2000 Steps	0.1 in	Full	2.54 mm	16.61 mm	0.654 in	6 mm	0.236 in	85 °C	-40 °C
E-Switch KAS1106E	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Gold	6	PC Pin		Slide (Standard)	SPST	Raised	25 mA	24 VDC	2000 Cycles	Phosphor Bronze	2000 Steps	0.1 in	Full	2.54 mm	16.61 mm	0.654 in	0.275 in		85 °C	-40 °C	6.99 mm
E-Switch KAS1106R	Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Gold	6	PC Pin		Slide (Standard)	SPST	Flush Recessed	25 mA	24 VDC	2000 Cycles	Phosphor Bronze	2000 Steps	0.1 in	Full	2.54 mm	16.61 mm	0.654 in	6 mm	0.236 in	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 6 Position Through Hole Slide (Standard) Actuator 25mA 24VDC

Technical documentation and resources

No documents available
