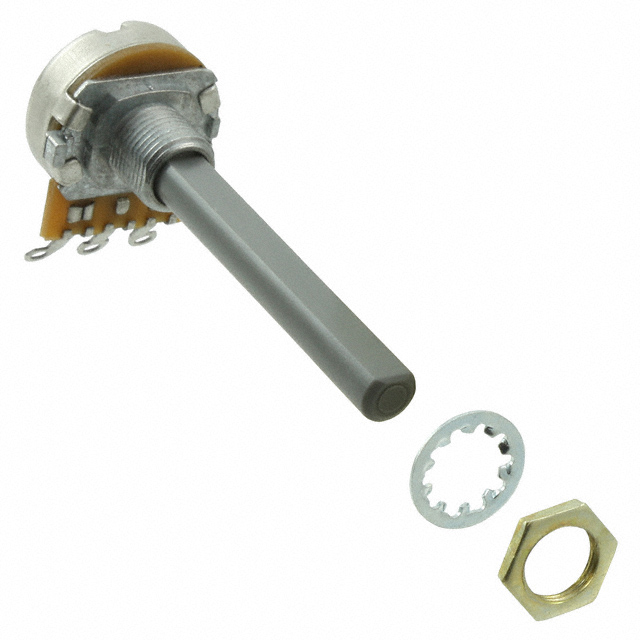

27ESB503MMF50N
ActiveTE Connectivity Passive Product
POT 50K OHM 1/5W CARBON LOG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
27ESB503MMF50N
ActiveTE Connectivity Passive Product
POT 50K OHM 1/5W CARBON LOG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 27ESB503MMF50N |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Diameter [diameter] | 0.25 in |
| Actuator Length [z] | 50 mm |
| Actuator Length [z] | 1.969 in |
| Actuator Type | Flatted |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Number of Gangs | 2 |
| Number of Turns | 1 |
| Power (Watts) | 0.2 W |
| Power (Watts) | 1/5 |
| Resistance (Ohms) | 50 kOhms |
| Resistive Material | Carbon |
| Rotation | 300 ░ |
| Taper | Logarithmic |
| Temperature Coefficient | 5 % |
| Termination Style | Solder Lug |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 5.01 | |
Description
General part information
27ESB Series
50k Ohm 2 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Carbon 0.2W, 1/5W Solder Lug
