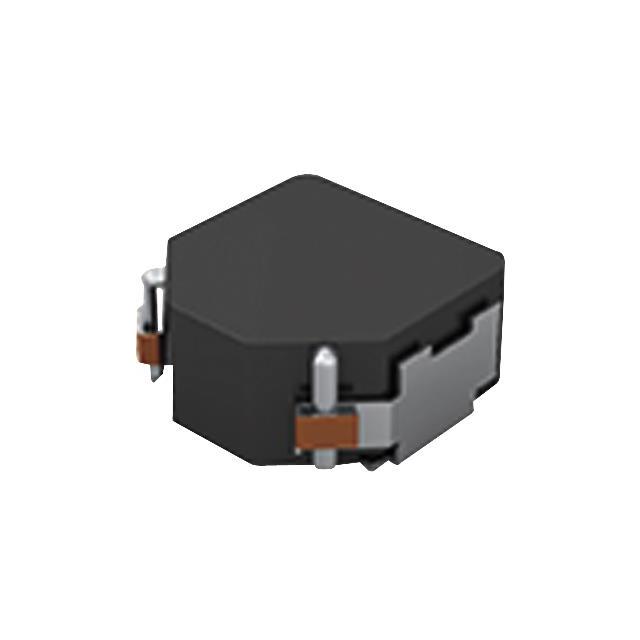

DFEG10040D-470M=P3

Obsolete

Murata Power Solutions Inc.

FIXED IND

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FIXED IND

Technical Specifications

Parameters and characteristics for this part

Specification	DFEG10040D-470M=P3

null

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Tolerance	DC Resistance (DCR) [Max]	Current - Saturation (Isat)	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Package / Case	Inductance Frequency - Test	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Material - Core	DC Resistance (DCR)
Murata Power Solutions Inc. DFEG10040D-470M=P3
Murata Power Solutions Inc. DFEG10040D-6R8M=P3	0.157 in	4 mm	Surface Mount	20 %	23 mOhm	8.6 A	6.8 µH	125 °C	-40 °C	Shielded	Nonstandard	100 kHz	AEC-Q200	0.429 "	10 mm	10.9 mm	0.394 in	6.4 A	Iron Powder
Murata Power Solutions Inc. DFEG10040D-3R3M=P3	0.157 in	4 mm	Surface Mount	20 %		13 A	3.3 µH	125 °C	-40 °C	Shielded	Nonstandard	100 kHz	AEC-Q200	0.429 "	10 mm	10.9 mm	0.394 in	10 A	Iron Powder	12 mOhm
Murata Power Solutions Inc. DFEG10040D-330M=P3
Murata Power Solutions Inc. DFEG10040D-100M=P3	0.157 in	4 mm	Surface Mount	20 %	33 mOhm		10 µH	125 °C	-40 °C	Shielded	Nonstandard	100 kHz	AEC-Q200	0.429 "	10 mm	10.9 mm	0.394 in	5.7 A	Iron Powder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Inductor

Technical documentation and resources

No documents available
