Q-07007000R060i

Active

Amphenol Custom Cable

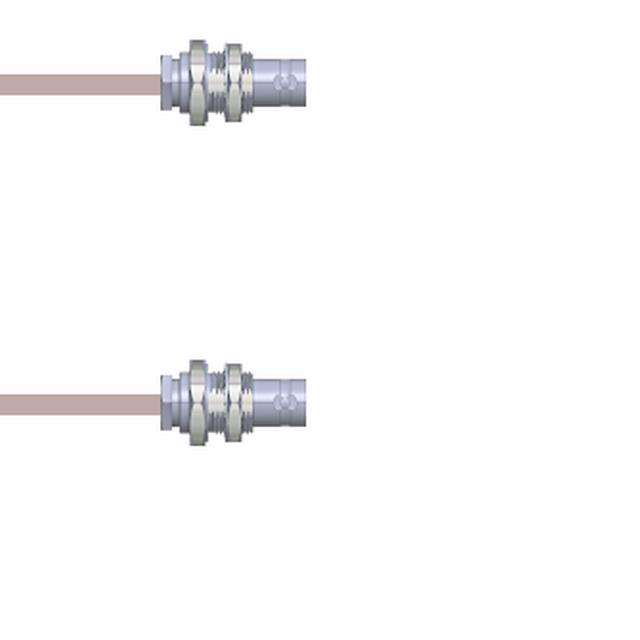

CBL ASSY BNC JACK TO JACK 5'

Deep-Dive with AI

Search across all available documentation for this part.

Q-07007000R060i

Active

Amphenol Custom Cable

CBL ASSY BNC JACK TO JACK 5'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-07007000R060i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	BNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	2 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms
Style	BNC to BNC

Q-070070 Series

Part	Frequency - Max [Max]	1st Connector Mounting Feature	2nd Connector	Overall Impedance	Color	Features	Length	Length	Length	Cable Type	2nd Connector Mounting Feature	1st Contact Gender	Style	2nd Connector Mounting Type	1st Connector	1st Connector Mounting Type	2nd Contact Gender
Amphenol Custom Cable Q-07007000R060i	2 GHz	Bulkhead - Front Side Nut	BNC Jack	50 Ohms	Copper	Shielded	5 ft	1.5 m	5 '	RG-316 DB	Bulkhead - Front Side Nut	Female	BNC to BNC	Panel Mount	BNC Jack	Panel Mount	Female
Amphenol Custom Cable Q-07007000R006i	2 GHz	Bulkhead - Front Side Nut	BNC Jack	50 Ohms	Copper	Shielded		152.4 mm	6 in	RG-316 DB	Bulkhead - Front Side Nut	Female	BNC to BNC	Panel Mount	BNC Jack	Panel Mount	Female
Amphenol Custom Cable Q-07007000R2.5M	2 GHz	Bulkhead - Front Side Nut	BNC Jack	50 Ohms	Copper	Shielded	8.2 '	2.5 m	98.4 in	RG-316 DB	Bulkhead - Front Side Nut	Female	BNC to BNC	Panel Mount	BNC Jack	Panel Mount	Female
Amphenol Custom Cable Q-07007000R024i	2 GHz	Bulkhead - Front Side Nut	BNC Jack	50 Ohms	Copper	Shielded		609.6 mm	24 "	RG-316 DB	Bulkhead - Front Side Nut	Female	BNC to BNC	Panel Mount	BNC Jack	Panel Mount	Female
Amphenol Custom Cable Q-07007000R002M	2 GHz	Bulkhead - Front Side Nut	BNC Jack	50 Ohms	Copper	Shielded	6.6 ft	2 m	78.7 in	RG-316 DB	Bulkhead - Front Side Nut	Female	BNC to BNC	Panel Mount	BNC Jack	Panel Mount	Female
Amphenol Custom Cable Q-07007000R084i	2 GHz	Bulkhead - Front Side Nut	BNC Jack	50 Ohms	Copper	Shielded	7 ft	2.1 m	84 in	RG-316 DB	Bulkhead - Front Side Nut	Female	BNC to BNC	Panel Mount	BNC Jack	Panel Mount	Female
Amphenol Custom Cable Q-07007000R003M	2 GHz	Bulkhead - Front Side Nut	BNC Jack	50 Ohms	Copper	Shielded	9.8 '	3 m	118.1 in	RG-316 DB	Bulkhead - Front Side Nut	Female	BNC to BNC	Panel Mount	BNC Jack	Panel Mount	Female
Amphenol Custom Cable Q-07007000R072i	2 GHz	Bulkhead - Front Side Nut	BNC Jack	50 Ohms	Copper	Shielded	6 ft	1.8 m	72 in	RG-316 DB	Bulkhead - Front Side Nut	Female	BNC to BNC	Panel Mount	BNC Jack	Panel Mount	Female
Amphenol Custom Cable Q-07007000R1.5M	2 GHz	Bulkhead - Front Side Nut	BNC Jack	50 Ohms	Copper	Shielded	4.9 ft	1.5 m	59.1 in	RG-316 DB	Bulkhead - Front Side Nut	Female	BNC to BNC	Panel Mount	BNC Jack	Panel Mount	Female
Amphenol Custom Cable Q-07007000R009i	2 GHz	Bulkhead - Front Side Nut	BNC Jack	50 Ohms	Copper	Shielded		228.6 mm	9 "	RG-316 DB	Bulkhead - Front Side Nut	Female	BNC to BNC	Panel Mount	BNC Jack	Panel Mount	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 310.75
		25	$ 304.72
		50	$ 298.68
		100	$ 292.64
		250	$ 286.61

Description

General part information

Q-070070 Series

Cable Assembly Coaxial BNC to BNC RG-316 DB 60.0" (1.5m) 5.0'

Documents

Technical documentation and resources

No documents available
