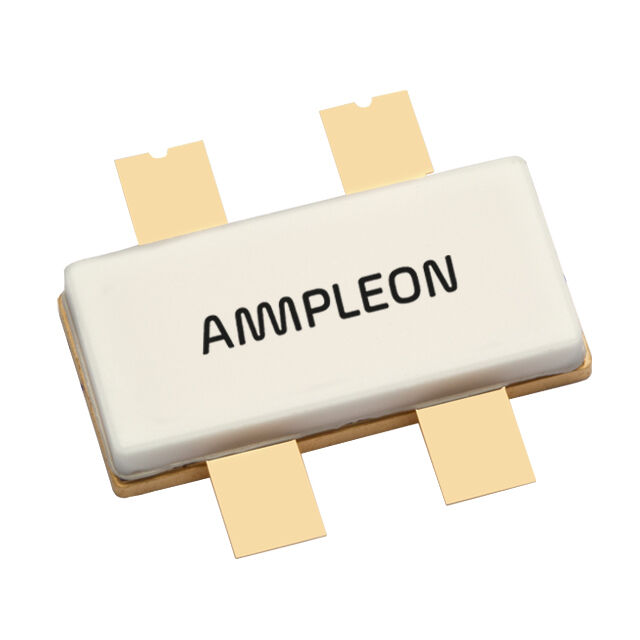

BLF7G20LS-90P,112

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V LDMOST

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V LDMOST

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated	Configuration	Package / Case	Current Rating (Amps)	Supplier Device Package	Gain	Mounting Type	Frequency [Max]	Frequency [Min]	Power - Output	Current - Test	Voltage - Test
Ampleon USA Inc. BLF7G20LS-90P,112	65 V	Common Source Dual	SOT-1121B	18 A	LDMOST	19.5 dB	Surface Mount	1.88 GHz	1.81 GHz	40 W	550 mA	28 V
Ampleon USA Inc. BLF7G22LS-200,112	65 V		SOT-502B		SOT502B	18.5 dBi	Chassis Mount	2.17 GHz	2.11 GHz	55 W	1.62 A	28 V
Ampleon USA Inc. BLF7G24LS-100,118	65 V		SOT-502B	28 A	SOT502B	18 dBi	Chassis Mount			20 W	900 mA	28 V
Ampleon USA Inc. BLF7G22LS-200,118	65 V		SOT-502B		SOT502B	18.5 dBi	Chassis Mount	2.17 GHz	2.11 GHz	55 W	1.62 A	28 V
Ampleon USA Inc. BLF7G10LS-250,112	65 V		SOT-502B		SOT502B	19.5 dB	Chassis Mount	960 MHz	920 MHz	60 W	1.8 A	30 V
Ampleon USA Inc. BLF7G20LS-200,112	65 V		SOT-502B		SOT502B	18 dBi	Chassis Mount	1.88 GHz	1.81 GHz	55 W	1.62 A	28 V
Ampleon USA Inc. BLF7G24LS-140,112	65 V		SOT-502B	28 A	SOT502B	18.5 dBi	Chassis Mount			30 W	1.3 A	28 V
Ampleon USA Inc. BLF7G27LS-100,112	65 V		SOT-502B	28 A	SOT502B	18 dBi	Chassis Mount	2.7 GHz	2.5 GHz	20 W	900 mA	28 V
Ampleon USA Inc. BLF7G24LS-100,112	65 V		SOT-502B	28 A	SOT502B	18 dBi	Chassis Mount			20 W	900 mA	28 V
Ampleon USA Inc. BLF7G24LS-140,118	65 V		SOT-502B	28 A	SOT502B	18.5 dBi	Chassis Mount			30 W	1.3 A	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 28 V 550 mA 1.81GHz ~ 1.88GHz 19.5dB 40W LDMOST
