ECA.1B.306.CYM
ActiveLEMO

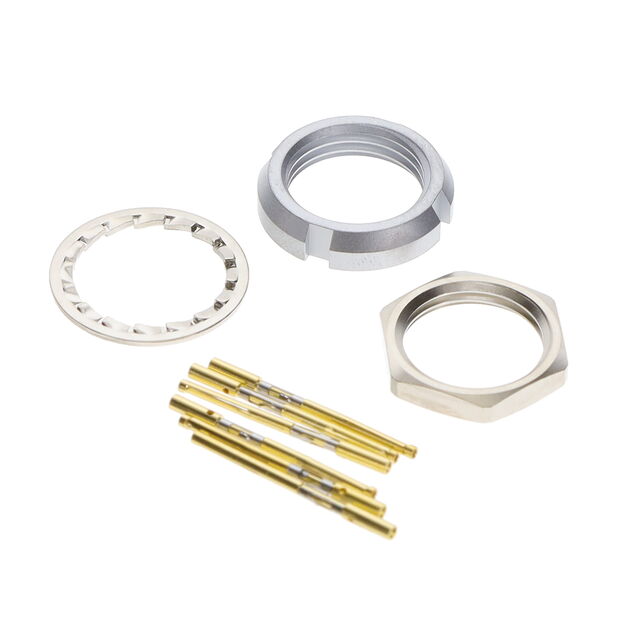

CONN RCPT FMALE 6POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ECA.1B.306.CYM
ActiveLEMO
CONN RCPT FMALE 6POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ECA.1B.306.CYM |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám |
| Contact Material | Bronze |
| Current Rating (Amps) | 7 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Front and Rear Side Nut |
| Number of Positions | 6 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Shell Size - Insert | 306 |
| Shielding | Shielded |
| Termination | Crimp |
ECA.1B Series
| Part | Shell Size - Insert | Contact Material | Orientation | Fastening Type | Number of Positions | Connector Type | Shielding | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Color | Primary Material | Insert Material | Shell Finish | Termination | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Shell Material | Mounting Feature | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | 306 | Bronze | A | Push-Pull | 6 | Receptacle Female Sockets | Shielded | 7 A | -55 °C | 250 °C | IP50 | Silver | Metal | Polyetheretherketone (PEEK) | Chrome | Crimp | Gold | 59 Áin | 1.5 Ám | UL94 V-0 | Brass | Front and Rear Side Nut | |
LEMO | 302 | Bronze | A | Push-Pull | 2 | Receptacle Female Sockets | Shielded | 15 A | -55 °C | 250 °C | IP50 | Silver | Metal | Polyetheretherketone (PEEK) | Chrome | Gold | 59 Áin | 1.5 Ám | UL94 V-0 | Brass | Front and Rear Side Nut | ||
LEMO | 310 | Bronze | A | Push-Pull | 10 | Receptacle Female Sockets | Shielded | 2.5 A | -55 °C | 250 °C | IP50 | Silver | Metal | Polyetheretherketone (PEEK) | Chrome | Gold | 59 Áin | 1.5 Ám | UL94 V-0 | Brass | Front and Rear Side Nut | ||
LEMO | 314 | Bronze | A | Push-Pull | 14 | Receptacle Female Sockets | Shielded | 2 A | -55 °C | 250 °C | IP50 | Silver | Metal | Polyetheretherketone (PEEK) | Chrome | Gold | 59 Áin | 1.5 Ám | UL94 V-0 | Brass | Front and Rear Side Nut | ||
LEMO | 304 | Bronze | A | Push-Pull | 4 | Receptacle Female Sockets | Shielded | 10 A | -55 °C | 250 °C | IP50 | Silver | Metal | Polyetheretherketone (PEEK) | Chrome | Gold | 59 Áin | 1.5 Ám | UL94 V-0 | Brass | Front and Rear Side Nut | ||
LEMO | 307 | Bronze | A | Push-Pull | 7 | Receptacle Female Sockets | Shielded | 7 A | -55 °C | 250 °C | IP50 | Silver | Metal | Polyetheretherketone (PEEK) | Chrome | Solder | Gold | 59 Áin | 1.5 Ám | UL94 V-0 | Brass | Front and Rear Side Nut | Panel Mount Through Hole |
LEMO | 310 | Bronze | A | Push-Pull | 10 | Receptacle Female Sockets | Shielded | 2.5 A | -55 °C | 250 °C | IP50 | Silver | Metal | Polyetheretherketone (PEEK) | Chrome | Solder | Gold | 59 Áin | 1.5 Ám | UL94 V-0 | Brass | Front and Rear Side Nut | Panel Mount Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 48.03 | |
| 10 | $ 40.82 | |||
| 25 | $ 38.27 | |||
| 50 | $ 36.44 | |||
| 100 | $ 34.70 | |||
| 250 | $ 32.64 | |||
Description
General part information
ECA.1B Series
6 Position Circular Connector Receptacle, Female Sockets Crimp
Documents
Technical documentation and resources
