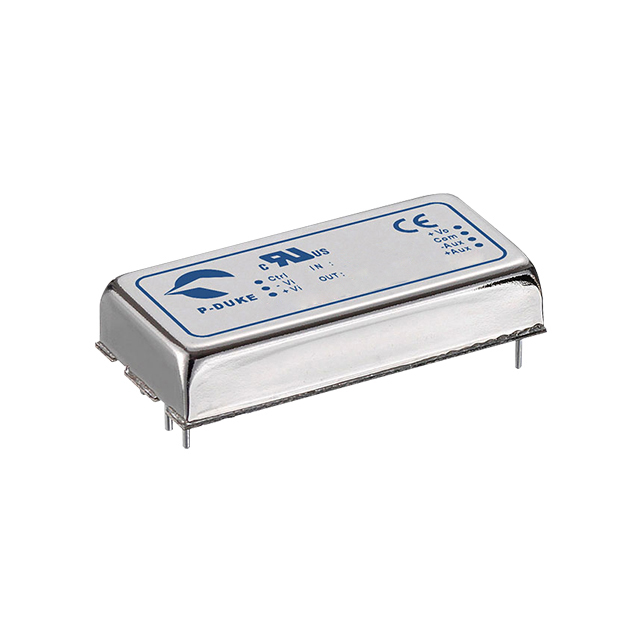

FED30-24S5P1W
ActiveP-DUKE Technology
DC DC CONVERTER 5.1V 31W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FED30-24S5P1W
ActiveP-DUKE Technology
DC DC CONVERTER 5.1V 31W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FED30-24S5P1W |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 88 % |
| Features | Remote On/Off, Adjustable Output |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 31 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Standard Number | 60950-1, 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 5.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 71.72 | |
| 10 | $ 63.04 | |||
| 25 | $ 59.88 | |||
| 50 | $ 57.60 | |||
| 100 | $ 55.41 | |||
Description
General part information
FED30 Series
Isolated Module DC DC Converter 1 Output 5.1V 6A 9V - 36V Input
