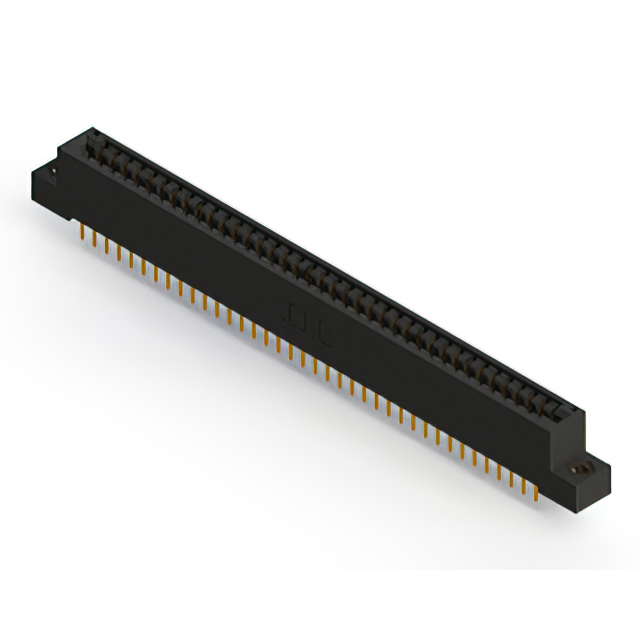

896-076-521-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 76POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-076-521-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 76POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-076-521-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 76 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
896-076 Series
...
| Part | Termination | Number of Positions | Gender | Mounting Type | Number of Positions/Bay/Row [custom] | Color | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Number of Rows | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Termination Rows | Contact Finish | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | 76 | Female | Through Hole | 38 | Black | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Cantilever | 2 | 0.125 in | 3.18 mm | 125 °C | -40 °C | Dual | 2 | Gold | Non Specified - Dual Edge | |||||
EDAC Inc. | Solder | 76 | Female | Through Hole | 38 | Black | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | Cantilever | 2 | 0.125 in | 3.18 mm | 125 °C | -40 °C | Dual | 2 | Gold | Non Specified - Dual Edge | ||||||
EDAC Inc. | Solder | 76 | Female | Through Hole | 38 | Black | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | M3 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Cantilever | 2 | 0.125 in | 3.18 mm | 125 °C | -40 °C | Dual | 2 | Gold | Non Specified - Dual Edge | |||||
EDAC Inc. | Wire Wrap | 76 | Female | Through Hole | 38 | Black | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Flush Mount Side Opening Unthreaded | 10 Áin | 0.25 Ám | Cantilever | 2 | 0.125 in | 3.18 mm | 125 °C | -40 °C | Dual | 2 | Gold | Non Specified - Dual Edge | 3.25 mm | 0.128 " | |||
EDAC Inc. | Solder | 76 | Female | Through Hole | 38 | Black | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Cantilever | 2 | 0.125 in | 3.18 mm | 125 °C | -40 °C | Dual | 2 | Gold | Non Specified - Dual Edge | |||||
EDAC Inc. | Solder | 76 | Female | Through Hole | 38 | Black | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Flush Mount Side Opening Unthreaded | 10 Áin | 0.25 Ám | Cantilever | 2 | 0.125 in | 3.18 mm | 125 °C | -40 °C | Dual | 2 | Gold | Non Specified - Dual Edge | 3.25 mm | 0.128 " | |||
EDAC Inc. | Solder | 76 | Female | Through Hole | 38 | Black | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | Cantilever | 2 | 0.125 in | 3.18 mm | 125 °C | -40 °C | Dual | 2 | Gold | Non Specified - Dual Edge | 3.96 mm | 0.156 in | |||
EDAC Inc. | Solder Eyelet(s) | 76 | Female | Board Edge Straddle Mount | 38 | Black | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Cantilever | 2 | 0.125 in | 3.18 mm | 125 °C | -40 °C | Dual | 2 | Gold | Non Specified - Dual Edge | Card Extender | ||||
EDAC Inc. | Solder | 76 | Female | Through Hole | 38 | Black | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Floating Bobbin Top Mount Opening | 10 Áin | 0.25 Ám | Cantilever | 2 | 0.125 in | 3.18 mm | 125 °C | -40 °C | Dual | 2 | Gold | Non Specified - Dual Edge | 2.95 mm | 0.116 in | |||
EDAC Inc. | Solder | 76 | Female | Through Hole | 38 | Black | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | Cantilever | 2 | 0.125 in | 3.18 mm | 125 °C | -40 °C | Dual | 2 | Gold | Non Specified - Dual Edge | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
896-076 Series
76 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
