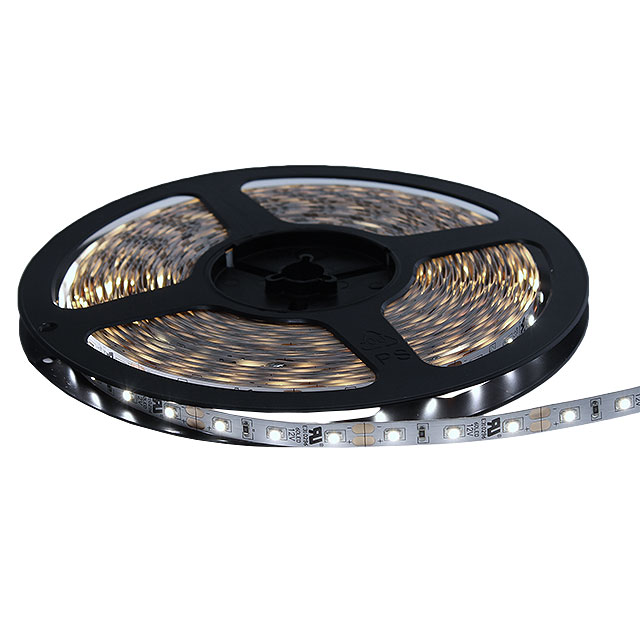

12V-SB-CW-12M

Active

Inspired LED, LLC

LED ENG COOL WHT 6000K 12M REEL

Search across all available documentation for this part.

Active

Inspired LED, LLC

LED ENG COOL WHT 6000K 12M REEL

Technical Specifications

Parameters and characteristics for this part

Specification	12V-SB-CW-12M

CCT (K)	6000 K
Color	Cool, White
Configuration	Linear Light Strip, Flexible
CRI (Color Rendering Index)	92
Height [z]	1.5 mm
Lens Type	Flat
Luminous Flux @ Current/Temperature	100 lm
Size / Dimension	46.99mm L per Segment
Size / Dimension [x]	12000 mm
Size / Dimension [y]	8 mm
Type	LED Engine
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	12 V

Part	Configuration	Type	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Viewing Angle	Lens Type	Luminous Flux @ Current/Temperature	Height [z]	CCT (K)	Color	Wavelength
Inspired LED, LLC 12V-SB-CW-12M	Flexible Linear Light Strip	LED Engine	46.99mm L per Segment	8 mm	12000 mm	12 V	92	120 °	Flat	100 lm	1.5 mm	6000 K	Cool White
Inspired LED, LLC 12V-SB-PW-12M	Flexible Linear Light Strip	LED Engine	46.99mm L per Segment	8 mm	12000 mm	12 V	94	120 °	Flat	95 lm	1.5 mm	4200 K	Neutral White
Inspired LED, LLC 12V-SB-WW-12M	Flexible Linear Light Strip	LED Engine	46.99mm L per Segment	8 mm	12000 mm	12 V	92	120 °	Flat		1.5 mm		Warm White
Inspired LED, LLC 12V-SB-GRN-12M	Flexible Linear Light Strip	LED Engine	46.99mm L per Segment	8 mm	12000 mm	12 V		120 °	Flat		1.5 mm		Green	565 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Engine - White, Cool Linear Light Strip, Flexible
