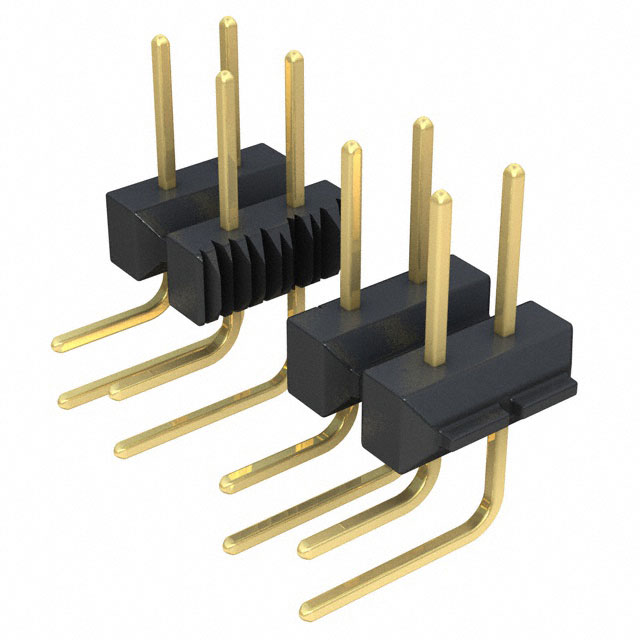

0010894283

Active

Molex

CONN HEADER R/A 28POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0010894283

Active

Molex

CONN HEADER R/A 28POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0010894283

Applications	General Purpose, Medical, Lighting, Automotive, Telecommunications
Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	74.8 Áin
Contact Finish Thickness - Post	1.9 Ám
Contact Length - Mating	8.13 mm
Contact Length - Mating	0.32 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

001089 Series

2.54mm Pitch C-Grid Breakaway Header, Dual Row, Vertical, High Temperature, 86 Circuits, Tin (Sn) Plating, 2.79mm PC Tail Length

...

Part	Insulation Color	Contact Type	Applications	Contact Length - Post	Contact Length - Post	Style	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Termination	Fastening Type	Number of Rows	Contact Finish - Post	Shrouding	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Number of Positions Loaded	Mounting Type	Contact Length - Mating	Contact Length - Mating [x]	Number of Positions	Number of Positions	Contact Length - Post [x]	Insulation Material	Contact Length - Mating
Molex 0010897162	Black	Male Pin	Automotive General Purpose Lighting Medical Telecommunications	0.107 "	2.71 mm	Board to Board Cable	11.1 mm	0.437 in	UL94 V-0	Solder	Push-Pull	2	Tin	Unshrouded	Copper Alloy	15 µin	0.38 µm	0.1 in	2.54 mm	0.09 in	2.29 mm	Gold	74.8 Áin	1.9 Ám	Breakaway Header	2.54 mm	0.1 in	Square	All	Through Hole	6.1 mm	0.24 in	16
Molex 0010897640	Black	Male Pin	Automotive General Purpose Lighting Medical Telecommunications	0.107 "	2.71 mm	Board to Board Cable	11.1 mm	0.437 in	UL94 V-0	Solder	Push-Pull	2	Tin	Unshrouded	Copper Alloy	30 Áin	0.76 Ám	0.1 in	2.54 mm	0.09 in	2.29 mm	Gold	74.8 Áin	1.9 Ám	Breakaway Header	2.54 mm	0.1 in	Square	All	Through Hole	6.1 mm	0.24 in		64
Molex 10-89-1066	Black	Male Pin	Automotive General Purpose Lighting Medical Telecommunications		2.79 mm	Board to Board Cable			UL94 V-0	Solder	Push-Pull	2	Tin	Unshrouded	Phosphor Bronze	15 µin	0.38 µm	0.1 in	2.54 mm			Gold	74.8 Áin	1.9 Ám	Breakaway Header	2.54 mm	0.1 in	Square	All	Through Hole Right Angle	6.1 mm	0.24 in		6	0.11 in	Polyester Glass Filled
Molex 0010897061	Black	Male Pin	Automotive General Purpose Lighting Medical Telecommunications	0.107 "	2.71 mm	Board to Board Cable	11.1 mm	0.437 in	UL94 V-0	Solder	Push-Pull	2	Tin	Unshrouded	Copper Alloy	150 Áin	3.81 Ám	0.1 in	2.54 mm	0.09 in	2.29 mm				Breakaway Header	2.54 mm	0.1 in	Square	All	Through Hole	6.1 mm	0.24 in		6
Molex 0010897081	Black	Male Pin	Automotive General Purpose Lighting Medical Telecommunications	0.107 "	2.71 mm	Board to Board Cable	11.1 mm	0.437 in	UL94 V-0	Solder	Push-Pull	2	Tin	Unshrouded	Copper Alloy	150 Áin	3.81 Ám	0.1 in	2.54 mm	0.09 in	2.29 mm				Breakaway Header	2.54 mm	0.1 in	Square	All	Through Hole	6.1 mm	0.24 in		8
Molex 0010894283	Black	Male Pin	Automotive General Purpose Lighting Medical Telecommunications		2.79 mm	Board to Board Cable			UL94 V-0	Solder	Push-Pull	2	Tin	Unshrouded	Copper Alloy	15 µin	0.38 µm	0.1 in	2.54 mm	0.22 in	5.6 mm	Gold	74.8 Áin	1.9 Ám	Breakaway Header	2.54 mm	0.1 in	Square	All	Through Hole Right Angle	8.13 mm			28	0.11 in	Polyester Glass Filled	0.32 in
Molex 0010977046	Black	Male Pin	Automotive General Purpose Lighting Medical Telecommunications		2.79 mm	Board to Board Cable	13.21 mm	0.52 in	UL94 V-0	Solder	Push-Pull	2	Tin	Unshrouded	Copper Alloy	15 µin	0.38 µm	0.1 in	2.54 mm	0.09 in	2.29 mm	Gold	74.8 Áin	1.9 Ám	Breakaway Header	2.54 mm	0.1 in	Square	All	Through Hole	8.13 mm			4	0.11 in		0.32 in
Molex 0010897721	Black	Male Pin	Automotive General Purpose Lighting Medical Telecommunications	0.107 "	2.71 mm	Board to Board Cable	11.1 mm	0.437 in	UL94 V-0	Solder	Push-Pull	2	Tin	Unshrouded	Copper Alloy	150 Áin	3.81 Ám	0.1 in	2.54 mm	0.09 in	2.29 mm				Breakaway Header	2.54 mm	0.1 in	Square	All	Through Hole	6.1 mm	0.24 in		72
Molex 10-89-1421	Black	Male Pin	Automotive General Purpose Lighting Medical Telecommunications	0.107 "	2.71 mm	Board to Board Cable	11.1 mm	0.437 in	UL94 V-0	Solder	Push-Pull	2	Tin	Unshrouded	Phosphor Bronze	15 µin	0.38 µm	0.1 in	2.54 mm	0.09 in	2.29 mm	Gold	74.8 Áin	1.9 Ám	Breakaway Header	2.54 mm	0.1 in	Square	All	Through Hole	6.1 mm	0.24 in		42		Polyester Glass Filled
Molex 0010894286	Black	Male Pin	Automotive General Purpose Lighting Medical Telecommunications		2.79 mm	Board to Board Cable			UL94 V-0	Solder	Push-Pull	2	Tin	Unshrouded	Copper Alloy	30 Áin	0.76 Ám	0.1 in	2.54 mm	0.22 in	5.6 mm	Gold	74.8 Áin	1.9 Ám	Breakaway Header	2.54 mm	0.1 in	Square	All	Through Hole Right Angle	6.1 mm	0.24 in		28	0.11 in	Polyester Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1200	$ 6.69

Description

General part information

001089 Series

2.54mm Pitch C-Grid Breakaway Header, Dual Row, Vertical, High Temperature, 86 Circuits, Tin (Sn) Plating, 2.79mm PC Tail Length
