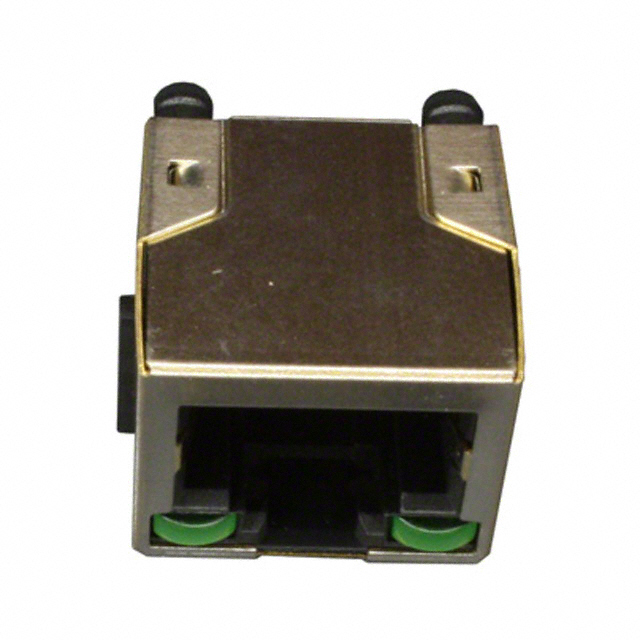

RJHSE-3385

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C VERT SHIELDED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRJHSE Series Brochure Datasheet

RJHSE-3385

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C VERT SHIELDED

Deep-Dive with AI

DocumentsRJHSE Series Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJHSE-3385

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Features	Board Lock, Panel Stops
Housing Material	Thermoplastic
LED Color	Green - Green
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Vertical
Shielding	Shielded
Tab Direction	User Selectable
Termination	Solder

RJHSE338 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Mounting Type	Number of Positions/Contacts	Shielding	Features	Orientation	Number of Rows	LED Color	Termination	Contact Finish	Number of Ports	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Tab Direction	Connector Type
Amphenol ICC (Commercial Products) RJHSE-3385	85 °C	-55 °C	Thermoplastic	Through Hole	8p8c (RJ45 Ethernet)	Shielded	Board Lock Panel Stops	Vertical	1	Green - Green	Solder	Gold	1	Phosphor Bronze	0.76 Ám	30 Áin	User Selectable	Jack
Amphenol ICC (Commercial Products) RJHSE338K	85 °C	-55 °C	Thermoplastic	Through Hole	8p8c (RJ45 Ethernet)	Shielded	Board Lock Panel Stops	Vertical	1	Orange Yellow - Green	Solder	Gold	1	Phosphor Bronze	0.76 Ám	30 Áin	User Selectable	Jack
Amphenol ICC (Commercial Products) RJHSE-3381	85 °C	-55 °C	Thermoplastic	Through Hole	8p8c (RJ45 Ethernet)	Shielded	Board Lock Panel Stops	Vertical	1	Yellow - Green	Solder	Gold	1	Phosphor Bronze	0.76 Ám	30 Áin	User Selectable	Jack
Amphenol ICC (Commercial Products) RJHSE3382A1	85 °C	-55 °C	Thermoplastic	Through Hole	8p8c (RJ45 Ethernet)	Shielded	Board Lock Panel Stops	Vertical	1	Green	Solder	Gold	1	Phosphor Bronze	0.76 Ám	30 Áin	User Selectable	Jack
Amphenol ICC (Commercial Products) RJHSE3384A1	85 °C	-55 °C	Thermoplastic	Through Hole	8p8c (RJ45 Ethernet)	Shielded	Board Lock Panel Stops	Vertical	1	Green Yellow	Solder	Gold	1	Phosphor Bronze	0.76 Ám	30 Áin	User Selectable	Jack
Amphenol ICC (Commercial Products) RJHSE338JA1	85 °C	-55 °C	Thermoplastic	Through Hole	8p8c (RJ45 Ethernet)	Shielded	Board Lock Panel Stops	Vertical	1	Green Red Yellow	Solder	Gold	1	Phosphor Bronze	0.76 Ám	30 Áin	User Selectable	Jack
Amphenol ICC (Commercial Products) RJHSE338LA1	85 °C	-55 °C	Thermoplastic	Through Hole	8p8c (RJ45 Ethernet)	Shielded	Board Lock Panel Stops	Vertical	1	Green Yellow - Red	Solder	Gold	1	Phosphor Bronze	0.76 Ám	30 Áin	User Selectable	Jack
Amphenol ICC (Commercial Products) RJHSE338J	85 °C	-55 °C	Thermoplastic	Through Hole	8p8c (RJ45 Ethernet)	Shielded	Board Lock Panel Stops	Vertical	1	Green Red Yellow	Solder	Gold	1	Phosphor Bronze	0.76 Ám	30 Áin	User Selectable	Jack
Amphenol ICC (Commercial Products) RJHSE338NA1	85 °C	-55 °C	Thermoplastic	Through Hole	8p8c (RJ45 Ethernet)	Shielded	Board Lock Panel Stops	Vertical	1		Solder	Gold	1	Phosphor Bronze	0.76 Ám	30 Áin	User Selectable	Jack
Amphenol ICC (Commercial Products) RJHSE3388	85 °C	-55 °C	Thermoplastic	Through Hole	8p8c (RJ45 Ethernet)	Shielded	Board Lock Panel Stops	Vertical	1	Green Red	Solder	Gold	1	Phosphor Bronze	0.76 Ám	30 Áin	User Selectable	Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.01
		10	$ 1.83
		25	$ 1.73
		40	$ 1.69
		110	$ 1.61
		330	$ 1.42

Description

General part information

RJHSE338 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded

Documents

Technical documentation and resources

RJHSE Series Brochure

Datasheet
