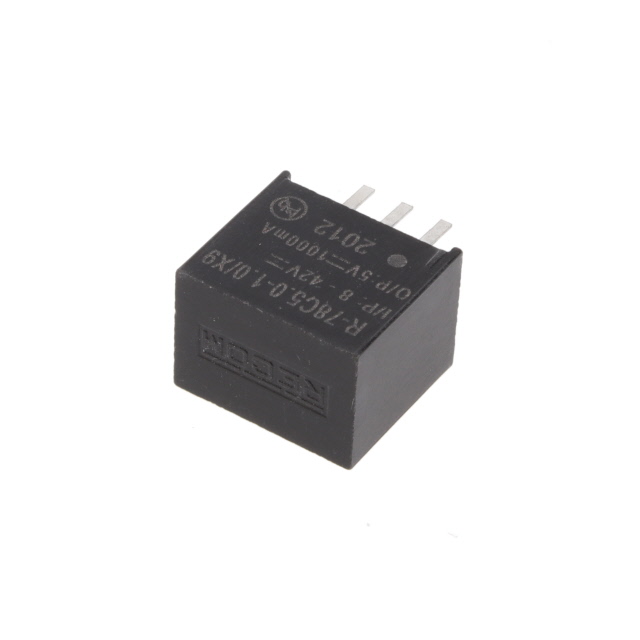

R-78C5.0-1.0/X9
ActiveRECOM Power
DC DC CONVERTER 5V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R-78C5.0-1.0/X9
ActiveRECOM Power
DC DC CONVERTER 5V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R-78C5.0-1.0/X9 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | EAC |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 93 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3-SIP Module |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 0.46 in |
| Size / Dimension [x] | 11.6 mm |
| Size / Dimension [y] | 0.33 in |
| Size / Dimension [y] | 8.5 mm |
| Size / Dimension [z] | 10.4 mm |
| Size / Dimension [z] | 0.41 " |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 42 V |
| Voltage - Input (Min) [Min] | 8 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 11.76 | |
| 5 | $ 11.32 | |||
| 10 | $ 11.14 | |||
| 25 | $ 10.90 | |||
| 50 | $ 10.73 | |||
| 100 | $ 10.55 | |||
| 250 | $ 10.32 | |||
| 500 | $ 10.16 | |||
Description
General part information
R-78C5.0 Series
Non-Isolated PoL Module DC DC Converter 1 Output 5V 1A 8V - 42V Input
