SG73S2BTTD2400D

Active

KOA Speer Electronics, Inc.

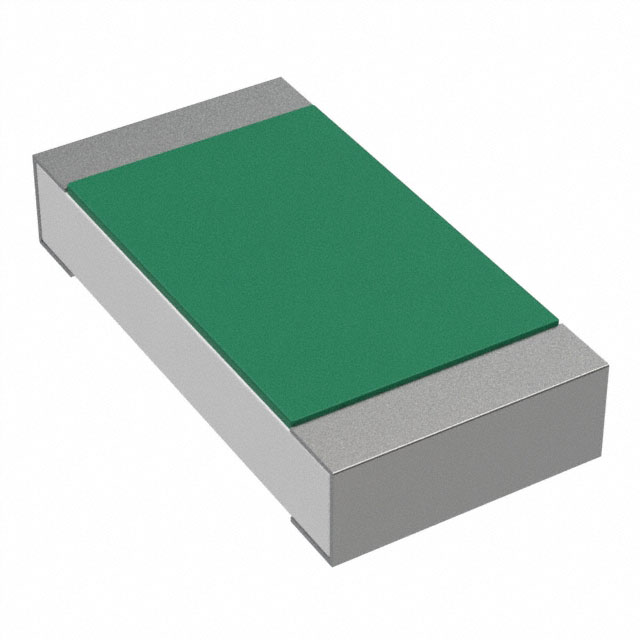

FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.33W, 240OHM, 200V, 0.5% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 1206, CHIP, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SG73S2BTTD2400D

Active

KOA Speer Electronics, Inc.

FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.33W, 240OHM, 200V, 0.5% +/-TOL, 200PPM/CEL, SURFACE MOUNT, 1206, CHIP, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SG73S2BTTD2400D

Composition	Thick Film
Features	Moisture Resistant, Pulse Withstanding, Automotive AEC-Q200
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Power (Watts)	0.333 W
Power (Watts)	0.3333333333333333 W
Ratings	AEC-Q200
Resistance	240 Ohms
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Supplier Device Package	1206
Temperature Coefficient	200 ppm/°C

SG73S2 Series

...

Part	Composition	Package / Case	Tolerance	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance	Number of Terminations	Temperature Coefficient	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Package / Case
KOA Speer Electronics, Inc. SG73S2BTTD3011F	Thick Film	1206 (3216 Metric)	1 %	0.333 W	0.3333333333333333 W	0.063 in	1.6 mm	0.126 "	3.2 mm	155 °C	-55 °C	1206	AEC-Q200	0.7 mm	0.028 in	3.01 kOhms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding
KOA Speer Electronics, Inc. SG73S2ATTD1802F	Thick Film	0805	1 %	250 mW	0.25 W		1.25 mm		2 mm	155 °C	-55 °C	0805	AEC-Q200			18 kOhms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.6 mm	0.024 in	0.079 in	0.049 in
KOA Speer Electronics, Inc. SG73S2ATTD5492F	Thick Film	0805	1 %	250 mW	0.25 W		1.25 mm		2 mm	155 °C	-55 °C	0805	AEC-Q200			54.9 kOhms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.6 mm	0.024 in	0.079 in	0.049 in
KOA Speer Electronics, Inc. SG73S2ETTD1430D	Thick Film	1210		0.5 W	0.5 W		0.102 " 2.6 mm		0.126 in 3.2 mm	155 °C	-55 °C	1210	AEC-Q200	0.7 mm	0.028 in	143 Ohms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding					3225 Metric
KOA Speer Electronics, Inc. SG73S2ATTD6343D	Thick Film	0805		250 mW	0.25 W		1.25 mm		2 mm	155 °C	-55 °C	0805	AEC-Q200			634 kOhms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.6 mm	0.024 in	0.079 in	0.049 in
KOA Speer Electronics, Inc. SG73S2BTTD3601F	Thick Film	1206 (3216 Metric)	1 %	0.333 W	0.3333333333333333 W	0.063 in	1.6 mm	0.126 "	3.2 mm	155 °C	-55 °C	1206	AEC-Q200	0.7 mm	0.028 in	3.6 kOhms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding
KOA Speer Electronics, Inc. SG73S2ETTD1503F	Thick Film	1210	1 %	0.5 W	0.5 W		0.102 " 2.6 mm		0.126 in 3.2 mm	155 °C	-55 °C	1210	AEC-Q200	0.7 mm	0.028 in	150000 Ohms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding					3225 Metric
KOA Speer Electronics, Inc. SG73S2BTTD2400D	Thick Film	1206 (3216 Metric)		0.333 W	0.3333333333333333 W	0.063 in	1.6 mm	0.126 "	3.2 mm	155 °C	-55 °C	1206	AEC-Q200	0.7 mm	0.028 in	240 Ohms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding
KOA Speer Electronics, Inc. SG73S2ETTD8251D	Thick Film	1210		0.5 W	0.5 W		0.102 " 2.6 mm		0.126 in 3.2 mm	155 °C	-55 °C	1210	AEC-Q200	0.7 mm	0.028 in	8.25 kOhms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding					3225 Metric
KOA Speer Electronics, Inc. SG73S2ATTD2700F	Thick Film	0805	1 %	250 mW	0.25 W		1.25 mm		2 mm	155 °C	-55 °C	0805	AEC-Q200			270 Ohms	2	200 ppm/°C	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	0.6 mm	0.024 in	0.079 in	0.049 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.04

Description

General part information

SG73S2 Series

240 Ohms ±0.5% 0.333W, 1/3W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
