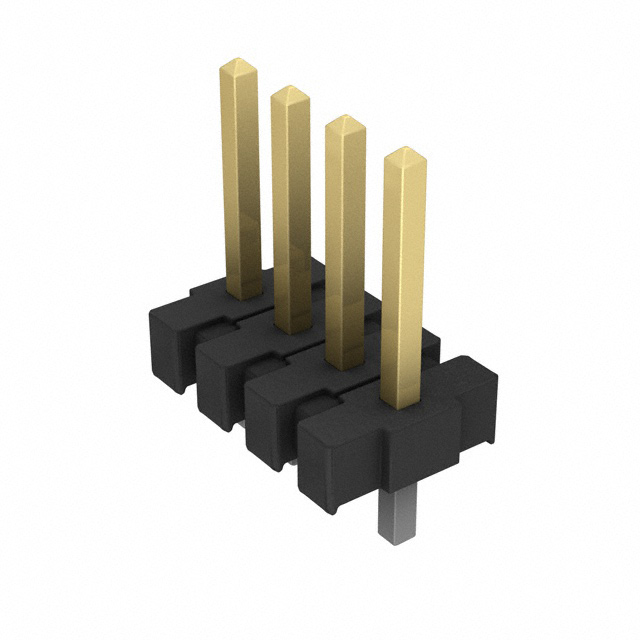

0026482040

Active

Molex

CONN HEADER VERT 4POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0026482040

Active

Molex

CONN HEADER VERT 4POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0026482040

Applications	Industrial, Automotive, Medical, General Purpose, Telecommunications
Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	0.59 in
Contact Length - Mating	14.99 mm
Contact Length - Post	0.172 in
Contact Length - Post	4.37 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.25 mm
Insulation Height	0.128 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.89 in
Overall Contact Length	22.61 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

002648 Series

KK 396 Breakaway Header, Vertical, 13 Circuits, 0.50µm Gold (Au) Selective Plating, Pin Length 19.05mm (.750")

...

Part	Contact Material	Fastening Type	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Connector Type	Contact Finish - Post	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Contact Shape	Style	Insulation Height	Insulation Height	Number of Rows	Termination	Contact Type	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Number of Positions	Contact Length - Post	Contact Length - Post
Molex 0026482052	Brass	Push-Pull	Gold	Through Hole Right Angle	0.51 µm	20 µin	Automotive General Purpose Industrial Medical Telecommunications	Polyester Glass Filled	0.156 in	3.96 mm	All	Breakaway Header	Tin	UL94 V-0	2.54 µm	100 µin	Black	14.55 mm	0.573 in	0.184 in	4.67 mm	Unshrouded	Square	Board to Board Cable	3.25 mm	0.128 in	1	Solder	Male Pin
Molex 0026482113	Brass	Push-Pull	Gold	Through Hole	0.51 µm	20 µin	Automotive General Purpose Industrial Medical Telecommunications	Polyester Glass Filled	0.156 in	3.96 mm	All	Breakaway Header	Tin	UL94 V-0	2.54 µm	100 µin	Black		11.43 mm			Shrouded - 1 Wall	Square	Board to Board Cable	9.14 mm	0.36 in	1	Solder	Male Pin	0.75 in	19.05 mm	0.45 in	11	0.172 in	4.37 mm
Molex 0026486214	Brass	Friction Lock		Through Hole Right Angle	1.52 Ám	60 Áin	Automotive General Purpose Industrial Medical Telecommunications	Polyester	0.156 in	3.96 mm	All	Breakaway Header	Tin	UL94 V-0	1.52 µm	60 µin	Black		13.41 mm			Shrouded - 1 Wall	Square	Board to Board Cable	9.02 mm	0.355 in	1	Solder	Male Pin			0.528 in	21	0.207 in	5.26 mm
Molex 0026486184	Brass	Friction Lock		Through Hole Right Angle	1.52 Ám	60 Áin	Automotive General Purpose Industrial Medical Telecommunications	Polyester	0.156 in	3.96 mm	All	Breakaway Header	Tin	UL94 V-0	1.52 µm	60 µin	Black		13.41 mm			Shrouded - 1 Wall	Square	Board to Board Cable	9.02 mm	0.355 in	1	Solder	Male Pin			0.528 in	18	0.207 in	5.26 mm
Molex 0026481081	Brass	Push-Pull		Through Hole	1.52 Ám	60 Áin	Automotive General Purpose Industrial Medical Telecommunications	Polyester Glass Filled	0.156 in	3.96 mm	All	Breakaway Header	Tin	UL94 V-0	1.52 µm	60 µin	Black		11.43 mm			Unshrouded	Square	Board to Board Cable	3.25 mm	0.128 in	1	Solder	Male Pin	0.75 in	19.05 mm	0.45 in	8	0.172 in	4.37 mm
Molex 0026482245	Brass	Friction Lock	Gold	Through Hole	0.51 µm	20 µin	Automotive General Purpose Industrial Medical Telecommunications	Polyester	0.156 in	3.96 mm	All	Breakaway Header	Tin	UL94 V-0	2.54 µm	100 µin	Black		11.43 mm			Shrouded - 1 Wall	Square	Board to Board Cable	12.7 mm	0.5 in	1	Solder	Male Pin	0.75 in	19.05 mm	0.45 in	24	0.172 in	4.37 mm
Molex 0026486114	Brass	Friction Lock		Through Hole Right Angle	1.52 Ám	60 Áin	Automotive General Purpose Industrial Medical Telecommunications	Polyester	0.156 in	3.96 mm	All	Breakaway Header	Tin	UL94 V-0	1.52 µm	60 µin	Black		13.41 mm			Shrouded - 1 Wall	Square	Board to Board Cable	9.02 mm	0.355 in	1	Solder	Male Pin			0.528 in	11	0.207 in	5.26 mm
Molex 0026482150	Brass	Push-Pull	Gold	Through Hole	0.51 µm	20 µin	Automotive General Purpose Industrial Medical Telecommunications	Polyester Glass Filled	0.156 in	3.96 mm	All	Breakaway Header	Tin	UL94 V-0	2.54 µm	100 µin	Black		14.99 mm			Unshrouded	Square	Board to Board Cable	3.25 mm	0.128 in	1	Solder	Male Pin	0.89 in	22.61 mm	0.59 in	15	0.172 in	4.37 mm
Molex 0026486074	Brass	Friction Lock		Through Hole Right Angle	1.52 Ám	60 Áin	Automotive General Purpose Industrial Medical Telecommunications	Polyester	0.156 in	3.96 mm	All	Breakaway Header	Tin	UL94 V-0	1.52 µm	60 µin	Black		13.41 mm			Shrouded - 1 Wall	Square	Board to Board Cable	9.02 mm	0.355 in	1	Solder	Male Pin			0.528 in	7	0.207 in	5.26 mm
Molex 0026482040	Brass	Push-Pull	Gold	Through Hole	0.51 µm	20 µin	Automotive General Purpose Industrial Medical Telecommunications	Polyester Glass Filled	0.156 in	3.96 mm	All	Breakaway Header	Tin	UL94 V-0	2.54 µm	100 µin	Black		14.99 mm			Unshrouded	Square	Board to Board Cable	3.25 mm	0.128 in	1	Solder	Male Pin	0.89 in	22.61 mm	0.59 in	4	0.172 in	4.37 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.96
		10	$ 2.60
		100	$ 2.07
		1000	$ 1.72
		5000	$ 1.54

Description

General part information

002648 Series

KK 396 Breakaway Header, Vertical, 13 Circuits, 0.50µm Gold (Au) Selective Plating, Pin Length 19.05mm (.750")
