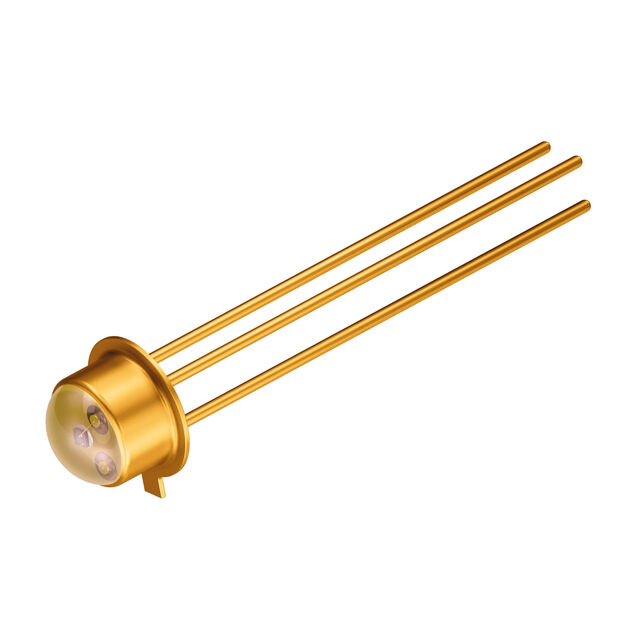

BP 103-3/4

Active

ams-OSRAM USA INC.

PHOTOTRANSISTOR NPN 850NM TO-18

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

PHOTOTRANSISTOR NPN 850NM TO-18

Technical Specifications

Parameters and characteristics for this part

Specification	BP 103-3/4

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Dark (Id) (Max) [Max]	50 nA
Mounting Type	Through Hole
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	TO-18-3 Metal Can, TO-206AA
Power - Max [Max]	150 mW
Viewing Angle	110 °
Voltage - Collector Emitter Breakdown (Max) [Max]	35 V
Wavelength	850 nm

Part	Viewing Angle	Current - Dark (Id) (Max) [Max]	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Wavelength	Orientation
ams-OSRAM USA INC. BP 103-3	110 °	50 nA	150 mW	50 V	100 mA	TO-18-3 Metal Can TO-206AA	Through Hole	-40 °C	80 C	850 nm	Top View
ams-OSRAM USA INC. BP 103-3/4	110 °	50 nA	150 mW	35 V	100 mA	TO-18-3 Metal Can TO-206AA	Through Hole	-40 °C	80 C	850 nm	Top View
ams-OSRAM USA INC. BP 103-4	110 °	50 nA	150 mW	35 V	100 mA	TO-18-3 Metal Can TO-206AA	Through Hole	-40 °C	80 C	850 nm	Top View

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 850nm Top View TO-206AA, TO-18-3 Metal Can
