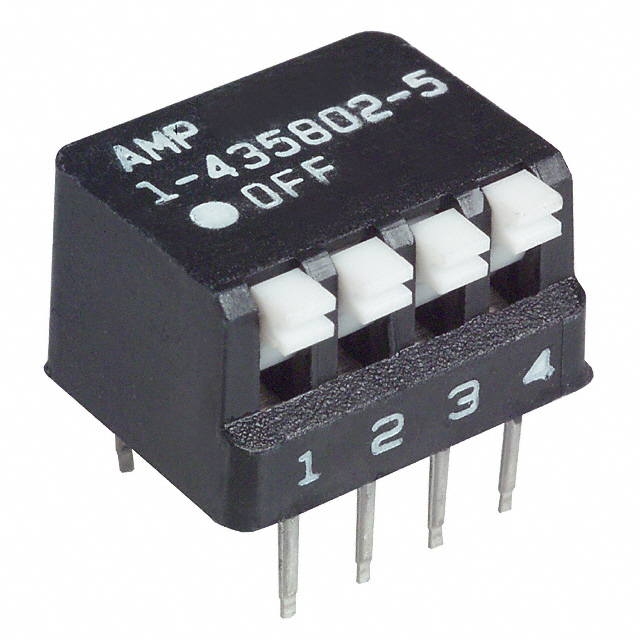

1-435802-5
ActiveTE Connectivity Raychem Cable Protection
SWITCH PIANO DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-435802-5
ActiveTE Connectivity Raychem Cable Protection
SWITCH PIANO DIP SPST 0.025A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-435802-5 |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Piano |
| Body Material | Polyester (PET), Glass Filled |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 7000 Cycles |
| Features | Tape Seal |
| Height Above Board | 0.29 in |
| Height Above Board | 7.37 mm |
| Length | 0.48 in |
| Length | 12.19 mm |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 24 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 4400 | $ 1.64 | |
Description
General part information
1-435802 Series
Dip Switch SPST 4 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
