GE24I07-P1J

Obsolete

MEAN WELL USA Inc.

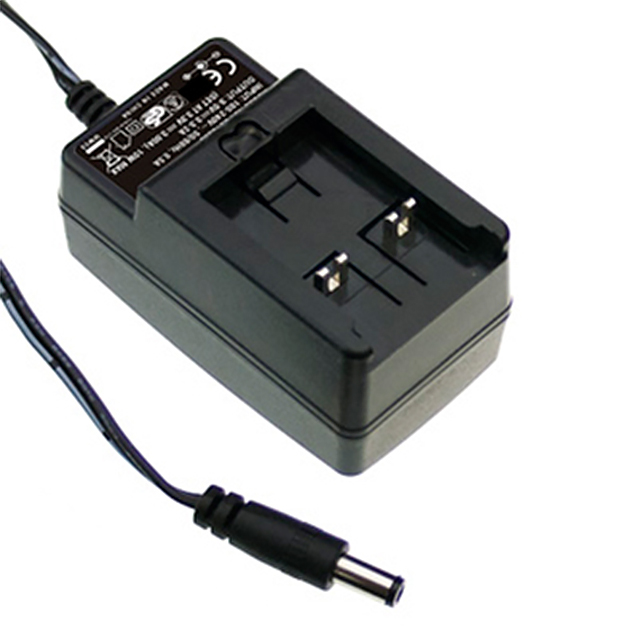

AC/DC WALL MNT ADAPTER 7.5V 15W

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

AC/DC WALL MNT ADAPTER 7.5V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	GE24I07-P1J

Applications	ITE (Commercial)
Approval Agency	RCM, cULus, CCC, CE, GS
Cord Length	1 m
Cord Length	39.4 "
Current - Output (Max) [Max]	2 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	15 W
Region Utilized	International
Size / Dimension [x]	3.19 in
Size / Dimension [x]	81 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.69 in
Size / Dimension [z]	40.5 mm
Size / Dimension [z]	1.59 "
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	7.5 V

Part	Efficiency	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Polarization	Input Connector	Cord Length	Cord Length	Form	Voltage - Output	Input Type	Current - Output (Max) [Max]	Power (Watts)	Region Utilized	Output Connector	Output Connector [diameter]	Output Connector [z]	No Load Power Consumption [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]
MEAN WELL USA Inc. GE24I07-P1J	Level VI	-10 °C	50 °C	ITE (Commercial)	90 VAC	264 VAC	CCC CE cULus GS RCM	Positive Center	Multi-Blade	1 m	39.4 "	Wall Mount (Class II)	7.5 V	Multi-Blade (Sold Separately)	2 A	15 W	International	Barrel Plug	2.1 mm 5.5 mm	11 mm	75 mW	43 mm	40.5 mm	1.69 in	3.19 in	1.59 "	81 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7.5V 15 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
