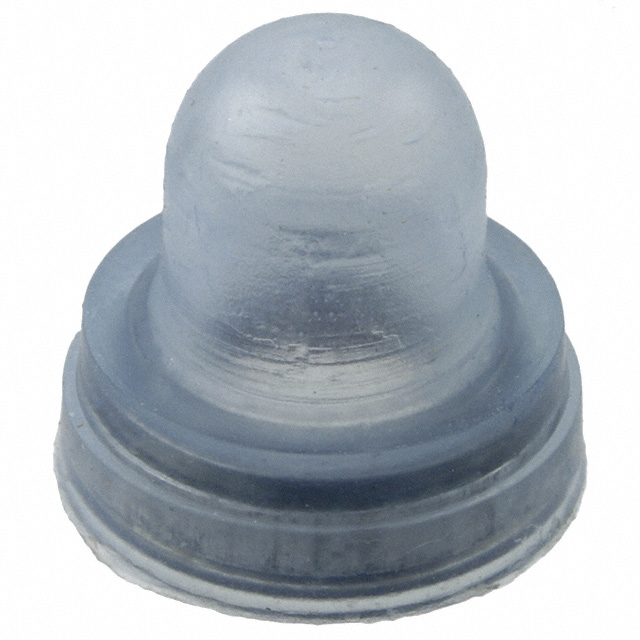

C1221/22 4

Active

APM HEXSEAL

PUSHBUTTON FULL BOOT CLEAR

Search across all available documentation for this part.

Active

APM HEXSEAL

PUSHBUTTON FULL BOOT CLEAR

Technical Specifications

Parameters and characteristics for this part

Specification	C1221/22 4

Actuator Diameter [diameter]	8.11 mm
Actuator Diameter [diameter]	0.32 in
Color	Clear
For Use With/Related Products	Multiple Series
Ingress Protection	IP66/IP68
Material	Silicone Rubber
Mounting Feature	Front of Panel
Operating Temperature [Max]	204 °C
Operating Temperature [Min]	-62 °C
Size / Dimension [z]	0.609 in
Size / Dimension [z]	15.48 mm
Thread Size	3/8-24 NF-2B
Type	Pushbutton, Full Boot

Part	Color	Ingress Protection	Type	Size / Dimension [z]	Size / Dimension [z]	For Use With/Related Products	Material	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Thread Size
APM HEXSEAL C1221/22 4	Clear	IP66/IP68	Pushbutton Full Boot	0.609 in	15.48 mm	Multiple Series	Silicone Rubber	8.11 mm	0.32 in	Front of Panel	-62 °C	204 °C	3/8-24 NF-2B
APM HEXSEAL C1221/21 4	Clear	IP66/IP68	Pushbutton Full Boot			Multiple Series	Silicone Rubber	8.11 mm	0.32 in	Front of Panel	-62 °C	204 °C	3/8-27 NS-2B
APM HEXSEAL C1221/27	Clear	IP66/IP68	Pushbutton Full Boot			Multiple Series	Silicone Rubber	10.72 mm	0.422 in	Front of Panel	-62 °C	204 °C	M11x1
APM HEXSEAL C1221/25	Black	IP66/IP68	Pushbutton Full Boot	0.605 in	15.37 mm	Multiple Series	Silicone Rubber	7.6 mm	0.3 in	Front of Panel	-62 °C	204 °C	3/8-27 NS-2B
APM HEXSEAL C1221/23 4	Clear	IP66/IP68	Pushbutton Full Boot	0.609 in	15.48 mm	Multiple Series	Silicone Rubber	8.11 mm	0.32 in	Front of Panel	-62 °C	204 °C	3/8-32 NEF-2B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PUSHBUTTON FULL BOOT CLEAR
