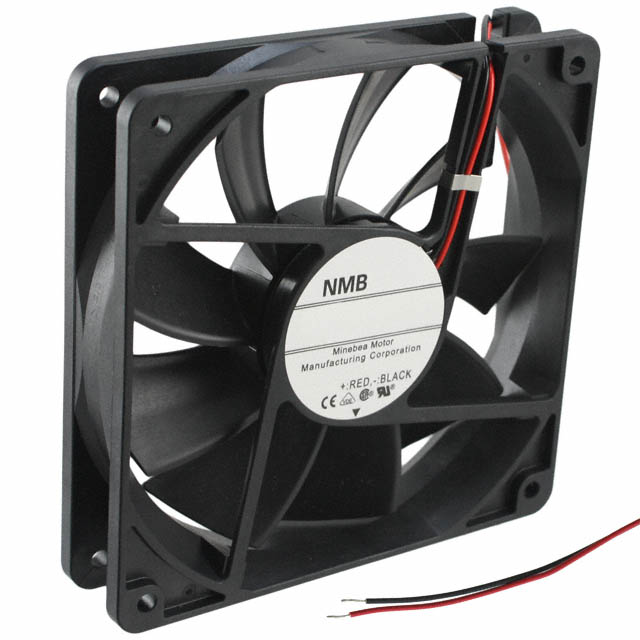

4710KL-04W-B50-E00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X25.5MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans & Blowers Catalog Fan Agency Approvals +1

4710KL-04W-B50-E00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X25.5MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans & Blowers Catalog Fan Agency Approvals +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4710KL-04W-B50-E00

Air Flow	114.7 CFM
Air Flow	3.21 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.55 A
Fan Type	Tubeaxial
Lifetime @ Temp.	100000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	41.5 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	6.6 W
RPM	2800 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	50.6 Pa
Static Pressure	0.203 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13 VDC
Voltage Range [Min]	6 VDC
Weight	180.08 g
Weight	0.397 lb
Width [x]	25.5 mm

4710KL Series

Part	Material - Frame	RPM	Weight	Weight	Power (Watts)	Noise	Current Rating (Amps)	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	Material - Blade	Lifetime @ Temp.	Termination	Approval Agency	Air Flow	Air Flow	Fan Type	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	Width [x]	Features
NMB TECHNOLOGIES 4710KL-04W-B30-B00	Plastic	2200 RPM	180.08 g	0.397 lb	3.36 W	35 dB	0.28 A	12 VDC	119 mm	119 mm	70 °C	70 °C	-10 °C	-10 °C	32.1 Pa	0.129 in H2O	Plastic	100000 Hrs	2 Wire Leads	CE CSA UL VDE	88.2 CFM	2.47 m³/min	Tubeaxial	13.8 VDC	6 VDC	Ball	25.5 mm
NMB TECHNOLOGIES 4710KL-05W-B49-E50	Plastic	2500 RPM	180.08 g	0.397 lb	5.28 W	38.5 dB	0.22 A	24 VDC	119 mm	119 mm	70 °C	70 °C	-10 °C	-10 °C	40.9 Pa	0.164 in H2O	Plastic	100000 Hrs	3 Wire Leads	CE CSA UL VDE	100.6 CFM	2.82 m³/min	Tubeaxial	27.6 VDC	10 VDC	Ball	25.5 mm	Speed Sensor (Tach)
NMB TECHNOLOGIES 4710KL-04W-B50-E00	Plastic	2800 RPM	180.08 g	0.397 lb	6.6 W	41.5 dB	0.55 A	12 VDC	119 mm	119 mm	60 °C	60 °C	-10 °C	-10 °C	50.6 Pa	0.203 in H2O	Plastic	100000 Hrs	2 Wire Leads	CE CSA UL VDE	114.7 CFM	3.21 m³/min	Tubeaxial	13 VDC	6 VDC	Ball	25.5 mm
NMB TECHNOLOGIES 4710KL-04W-B20-E00	Plastic	1900 RPM	180.08 g	0.397 lb	2.28 W	31 dB(A)	0.19 A	12 VDC	119 mm	119 mm	70 °C	70 °C	-10 °C	-10 °C	24.9 Pa	0.1 in H2O	Plastic	100000 Hrs	2 Wire Leads	CE CSA UL VDE	75.9 CFM	2.13 mł/min	Tubeaxial	13.8 VDC	6 VDC	Ball	25.5 mm
NMB TECHNOLOGIES 4710KL-05W-B59-E00	Plastic	2800 RPM	180.08 g	0.397 lb	6.96 W	41.5 dB	0.29 A	24 VDC	119 mm	119 mm	60 °C	60 °C	-10 °C	-10 °C	50.6 Pa	0.203 in H2O	Plastic	100000 Hrs	3 Wire Leads	CE CSA UL VDE	114.7 CFM	3.21 m³/min	Tubeaxial	26 VDC	10 VDC	Ball	25.5 mm	Locked Rotor Sensor
NMB TECHNOLOGIES 4710KL-04W-B50-B00	Plastic	2800 RPM	180.08 g	0.397 lb	6.6 W	41.5 dB	0.55 A	12 VDC	119 mm	119 mm	60 °C	60 °C	-10 °C	-10 °C	50.6 Pa	0.203 in H2O	Plastic	100000 Hrs	2 Wire Leads	CE CSA UL VDE	114.7 CFM	3.21 m³/min	Tubeaxial	13 VDC	6 VDC	Ball	25.5 mm
NMB TECHNOLOGIES 4710KL-04W-B19-E50	Plastic	1600 RPM	180.08 g	0.397 lb	1.44 W	27 dB(A)	120 mA	12 VDC	119 mm	119 mm	70 °C	70 °C	-10 °C	-10 °C	17.9 Pa	0.072 in H2O	Plastic	100000 Hrs	3 Wire Leads	CE CSA UL VDE	63.5 CFM	1.78 mł/min	Tubeaxial	13.8 VDC	6 VDC	Ball	25.5 mm	Speed Sensor (Tach)
NMB TECHNOLOGIES 4710KL-05W-B59-E50	Plastic	2800 RPM	180.08 g	0.397 lb	6.96 W	41.5 dB	0.29 A	24 VDC	119 mm	119 mm	60 °C	60 °C	-10 °C	-10 °C	50.6 Pa	0.203 in H2O	Plastic	100000 Hrs	3 Wire Leads	CE CSA UL VDE	114.7 CFM	3.21 m³/min	Tubeaxial	26 VDC	10 VDC	Ball	25.5 mm	Speed Sensor (Tach)
NMB TECHNOLOGIES 4710KL-04W-B59-E00	Plastic	2800 RPM	180.08 g	0.397 lb	6.6 W	41.5 dB	0.55 A	12 VDC	119 mm	119 mm	60 °C	60 °C	-10 °C	-10 °C	50.6 Pa	0.203 in H2O	Plastic	100000 Hrs	3 Wire Leads	CE CSA UL VDE	114.7 CFM	3.21 m³/min	Tubeaxial	13 VDC	6 VDC	Ball	25.5 mm	Locked Rotor Sensor
NMB TECHNOLOGIES 4710KL-05W-B49-E00	Plastic	2500 RPM	180.08 g	0.397 lb	5.28 W	38.5 dB	0.22 A	24 VDC	119 mm	119 mm	70 °C	70 °C	-10 °C	-10 °C	40.9 Pa	0.164 in H2O	Plastic	100000 Hrs	3 Wire Leads	CE CSA UL VDE	100.6 CFM	2.82 m³/min	Tubeaxial	27.6 VDC	10 VDC	Ball	25.5 mm	Locked Rotor Sensor

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.76
		10	$ 14.95
		25	$ 14.28
		50	$ 13.79
		100	$ 13.32
		250	$ 12.73
		500	$ 12.29

Description

General part information

4710KL Series

Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Ball 114.7 CFM (3.21m³/min) 2 Wire Leads
