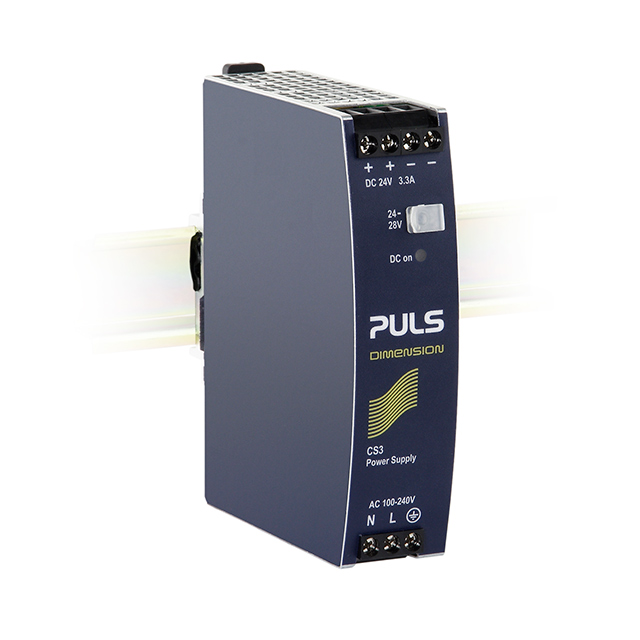

CS3.241

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 80W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 80W

Technical Specifications

Parameters and characteristics for this part

Specification	CS3.241

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	ITE (Commercial)
Approval Agency	DNV GL, CSA, EAC, IEC, ABS, NEC, UL
Current - Output (Max) [Max]	3.3 A
Efficiency	89.8 %
Features	Universal Input, Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	80 W
Size / Dimension [x]	102 mm
Size / Dimension [x]	4.02 in
Size / Dimension [y]	32 mm
Size / Dimension [y]	1.26 in
Size / Dimension [z]	124 mm
Size / Dimension [z]	4.88 "
Voltage - Output 1	24 V

Part	Efficiency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Output 1	Number of Outputs	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Input Type	Features	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Applications
PULS, LP CS3.241	89.8 %	90 VAC	264 VAC	24 V	1	3.3 A	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	ABS CSA DNV GL EAC IEC NEC UL	AC	Adjustable Output Load Sharing Universal Input	80 W	70 °C	0 °C	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 180.00

General part information

AC/DC DIN RAIL SUPPLY 24V 80W
