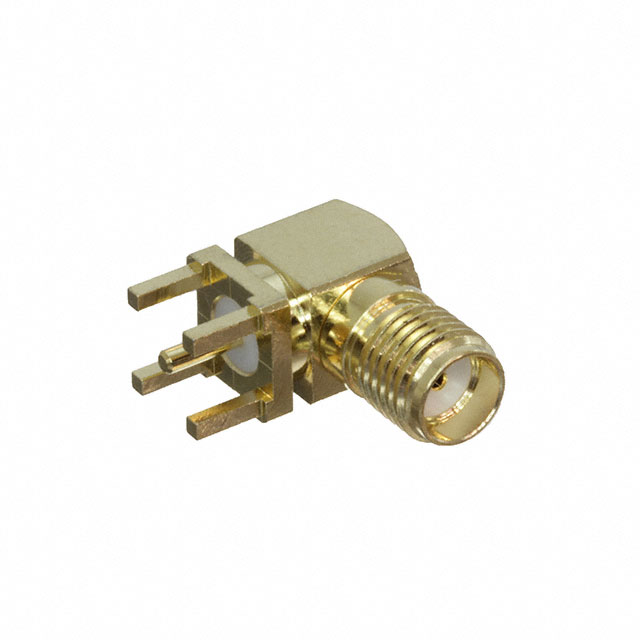

RF2-03E-T-00-50-G

Active

Adam Tech

RF SMA CONNECTOR

Search across all available documentation for this part.

Active

Adam Tech

RF SMA CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	RF2-03E-T-00-50-G

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Code E
Frequency - Max [Max]	6000 MHz
Housing Color	White
Impedance	50 Ohms
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Mounting Type	Connector Type	Dielectric Material	Body Finish	Impedance	Center Contact Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Connector Style	Voltage Rating	Contact Termination	Features	Shield Termination	Housing Color	Center Contact Plating	Body Material
Adam Tech RF2-03E-T-00-50-G	Through Hole Right Angle	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Brass	6000 MHz	-65 ░C	165 °C	1	SMA	335 V	Solder	Code E	Solder	White	Gold	Brass
Adam Tech RF2-03-T-00-50-G	Through Hole	Jack Male Pin	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Brass	18 GHz	-65 ░C	165 °C	1	SMA	250 VDC	Solder		Solder		Gold	Brass
