34DWMSP15B4M6RT

Active

Grayhill Inc.

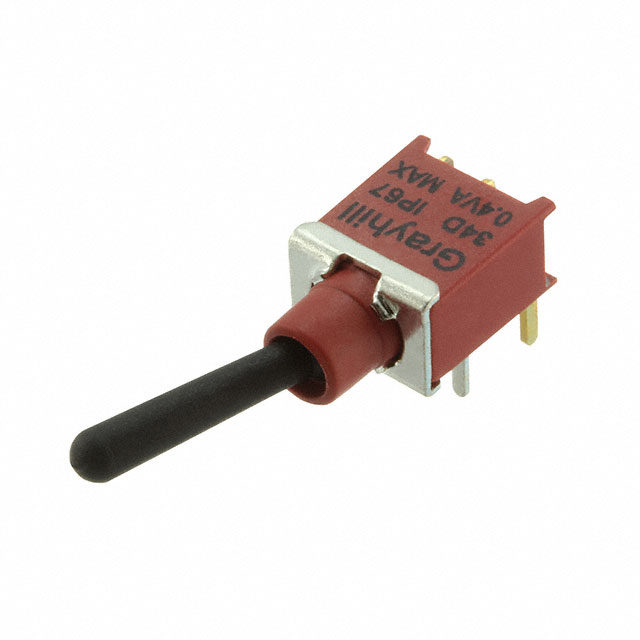

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

34DWMSP15B4M6RT

Active

Grayhill Inc.

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	34DWMSP15B4M6RT

Actuator Length [x]	10.7 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

34DWMSP Series

Part	Switch Function	Ingress Protection	Mounting Type	Actuator Type	Actuator Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Features	Bushing Thread	Actuator Material	Voltage Rating - DC	Illumination	Circuit	Voltage Rating - AC	Electrical Life	Termination Style	Actuator Length [z]
Grayhill Inc. 34DWMSP15B4M6RT	On-On	IP67 - Dust Tight Waterproof	Through Hole Right Angle	Standard Round	10.7 mm	-30 ░C	85 °C	0.4 VA	Epoxy Sealed Terminals	Unthreaded	Brass Chrome Plated	20 V	Non-Illuminated	SPDT	20 V	30000 Cycles	PC Pin
Grayhill Inc. 34DWMSP12B4M6RT	On-On	IP67 - Dust Tight Waterproof	Through Hole Right Angle	Standard Round	6.1 mm	-30 ░C	85 °C	0.4 VA	Epoxy Sealed Terminals	Unthreaded	Brass Chrome Plated	20 V	Non-Illuminated	SPDT	20 V	30000 Cycles	PC Pin
Grayhill Inc. 34DWMSP33B4M2RT	On-Off-On	IP67 - Dust Tight Waterproof	Through Hole	Standard Round	8.7 mm	-30 ░C	85 °C	0.4 VA	Epoxy Sealed Terminals	Unthreaded	Brass Chrome Plated	20 V	Non-Illuminated	SPDT	20 V	30000 Cycles	PC Pin
Grayhill Inc. 34DWMSP41B4M1RT	Mom-Off-Mom	IP67 - Dust Tight Waterproof		Standard Round	10.69 mm	-30 ░C	85 °C	0.4 VA	Epoxy Sealed Terminals	Unthreaded	Brass Chrome Plated	20 V	Non-Illuminated	SPDT	20 V	30000 Cycles	Solder Lug
Grayhill Inc. 34DWMSP31B4M2QT	On-Off-On	IP67 - Dust Tight Waterproof	Through Hole	Standard Round	10.7 mm	-30 ░C	85 °C	3 A	Epoxy Sealed Terminals	Unthreaded	Brass Chrome Plated	28 V	Non-Illuminated	SPDT	125 V	30000 Cycles	PC Pin
Grayhill Inc. 34DWMSP16B4M6RT	On-On	IP67 - Dust Tight Waterproof	Through Hole Right Angle	Standard Round		-30 ░C	85 °C	0.4 VA	Epoxy Sealed Terminals	Unthreaded	Brass Chrome Plated	20 V	Non-Illuminated	SPDT	20 V	30000 Cycles	PC Pin	6.7 mm
Grayhill Inc. 34DWMSP42B4M6RT	Mom-Off-Mom	IP67 - Dust Tight Waterproof	Through Hole Right Angle	Standard Round	6.1 mm	-30 ░C	85 °C	0.4 VA	Epoxy Sealed Terminals	Unthreaded	Brass Chrome Plated	20 V	Non-Illuminated	SPDT	20 V	30000 Cycles	PC Pin
Grayhill Inc. 34DWMSP36B4M2RT	On-Off-On	IP67 - Dust Tight Waterproof	Through Hole	Standard Round		-30 ░C	85 °C	0.4 VA	Epoxy Sealed Terminals	Unthreaded	Brass Chrome Plated	20 V	Non-Illuminated	SPDT	20 V	30000 Cycles	PC Pin	6.7 mm
Grayhill Inc. 34DWMSP31B4M1RT	On-Off-On	IP67 - Dust Tight Waterproof		Standard Round	10.69 mm	-30 ░C	85 °C	0.4 VA	Epoxy Sealed Terminals	Unthreaded	Brass Chrome Plated	20 V	Non-Illuminated	SPDT	20 V	30000 Cycles	Solder Lug
Grayhill Inc. 34DWMSP22B4M6RT	On-Mom	IP67 - Dust Tight Waterproof	Through Hole Right Angle	Standard Round	6.1 mm	-30 ░C	85 °C	0.4 VA	Epoxy Sealed Terminals	Unthreaded	Brass Chrome Plated	20 V	Non-Illuminated	SPDT	20 V	30000 Cycles	PC Pin
