H2BXT-10104-S6

Active

Hirose Electric USA, Inc.

JUMPER-H1500TR/A3049S/X 4"

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

JUMPER-H1500TR/A3049S/X 4"

Technical Specifications

Parameters and characteristics for this part

...

Part	Wire Gauge	Contact End	Contact Finish	Length [x]	Length [x]	Color	Number of Rows	Number of Conductors	Length	Length
Hirose Electric USA, Inc. H2BXT-10105-R4	24 AWG	Socket to Cable (Round)	Tin	5 in	127 mm	Red	1	1
Hirose Electric USA, Inc. H2BXT-10106-N6	26 AWG	Socket to Cable (Round)	Tin			Brown	1	1	152.4 mm	6 in
Hirose Electric USA, Inc. H2BXT-10103-N4	24 AWG	Socket to Cable (Round)	Tin	3 in		Brown	1	1	76.2 mm
Hirose Electric USA, Inc. H2BXT-10104-S6	26 AWG	Socket to Cable (Round)	Tin	4 "	101.6 mm	Slate	1	1
Hirose Electric USA, Inc. H2BXT-10105-S8	28 AWG	Socket to Cable (Round)	Tin	5 in	127 mm	Slate	1	1
Hirose Electric USA, Inc. H2BXT-10108-N6	26 AWG	Socket to Cable (Round)	Tin			Brown	1	1	203.2 mm	8 in
Hirose Electric USA, Inc. H2BXT-10112-Y6	26 AWG	Socket to Cable (Round)	Tin	12 in		Yellow	1	1	304.8 mm
Hirose Electric USA, Inc. H2BXT-10105-W4	24 AWG	Socket to Cable (Round)	Tin	5 in	127 mm	White	1	1
Hirose Electric USA, Inc. H2BXT-10108-S4	24 AWG	Socket to Cable (Round)	Tin			Slate	1	1	203.2 mm	8 in
Hirose Electric USA, Inc. H2BXT-10110-N8	28 AWG	Socket to Cable (Round)	Tin	10 in		Brown	1	1	254 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

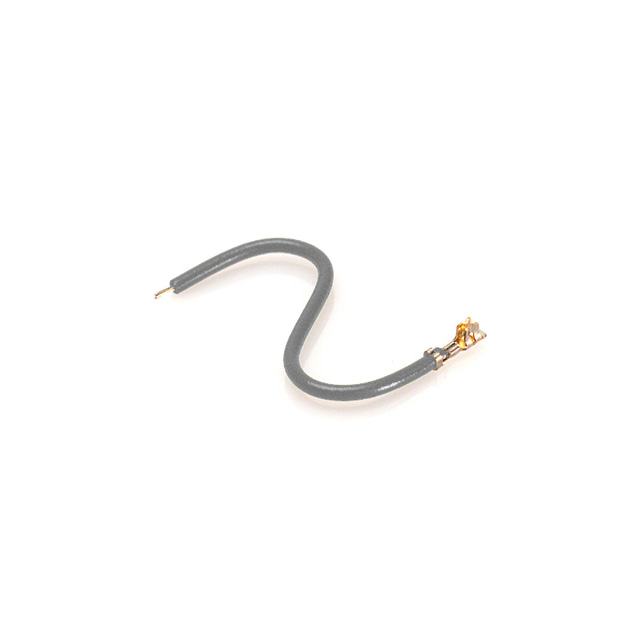

Slate 26 AWG Jumper Lead Socket to Cable (Round) Tin 4.00" (101.60mm)
