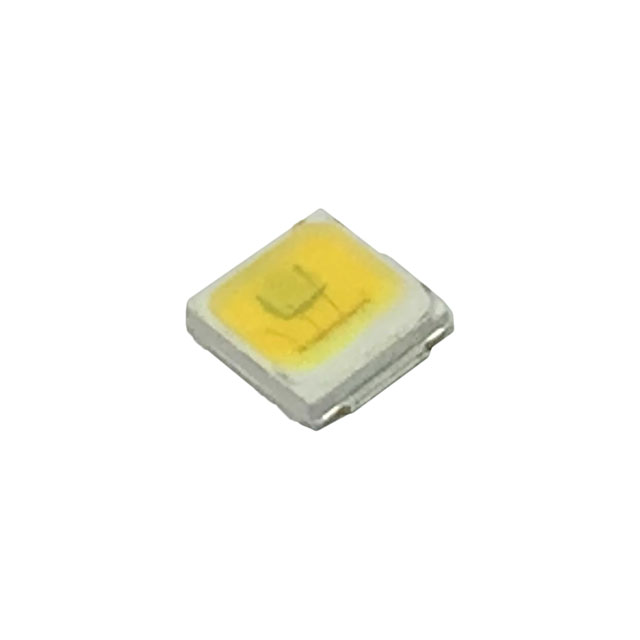

AB-EZD05N-B3-K40
ActiveAmerican Bright Optoelectronics Corporation
LED AB-EZD NEUT WHT 4000K 3030
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB-EZD05N-B3-K40
ActiveAmerican Bright Optoelectronics Corporation
LED AB-EZD NEUT WHT 4000K 3030
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB-EZD05N-B3-K40 |
|---|---|
| CCT (K) | 4000 K |
| Color | Neutral, White |
| CRI (Color Rendering Index) | 70 |
| Flux @ 25°C, Current - Test | 55 lm |
| Flux @ 85°C, Current - Test | 45 lm |
| Height - Seated (Max) [Max] [z] | 0.52 mm |
| Height - Seated (Max) [Max] [z] | 0.02 " |
| Mounting Type | Surface Mount |
| Package / Case | 1212 |
| Package / Case | 3030 Metric |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Supplier Device Package | 3030 |
| Thermal Resistance of Package [diameter] | 15 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Reel® | 1 | $ 1.50 | |
| 10 | $ 0.95 | |||
| 100 | $ 0.70 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.53 | |||
| Tape & Reel (TR) | 10000 | $ 0.42 | ||
Description
General part information
AB-EZD05 Series
LED Lighting AB-EZD White, Neutral 4000K (3725K ~ 4275K) 24V 120° 1212 (3030 Metric)
