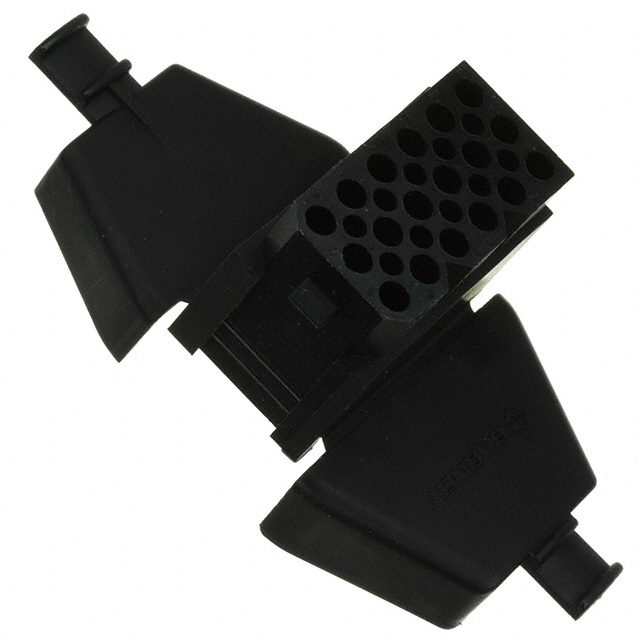

SMS18RDH1

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG 18POS 5.08MM

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG 18POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Connector Type	Number of Rows	Mounting Type	Contact Termination	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Fastening Type	Note	Insulation Material	Features	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Shrouding	Current Rating (Amps)	Style	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Contact Shape	Insulation Color	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded
Souriau-Sunbank by Eaton SMS18RDH1	Male or Female	Receptacle	3	Free Hanging (In-Line)	Crimp	18	-40 °C	105 ░C	5.08 mm	0.2 in	0.2 in	5.08 mm	Locking Ramp	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Strain Relief
Souriau-Sunbank by Eaton SMS18R-4TR29	Male Pin	Header	6	Through Hole		18	-55 °C	125 °C					Locking Ramp		Polyester Glass Filled		0.972 in	24.7 mm	5.08 mm	0.2 in	Unshrouded	5 A	Board to Cable/Wire	Tin	3 µm	118.1 µin	118.1 µin	3 µm	Solder	0.173 in	4.4 mm	UL94 V-0	0.28 in	7.11 mm	Circular	Black	Copper Alloy	5.08 mm	0.2 "	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Rectangular Connectors - Housings Receptacle 0.200" (5.08mm)
