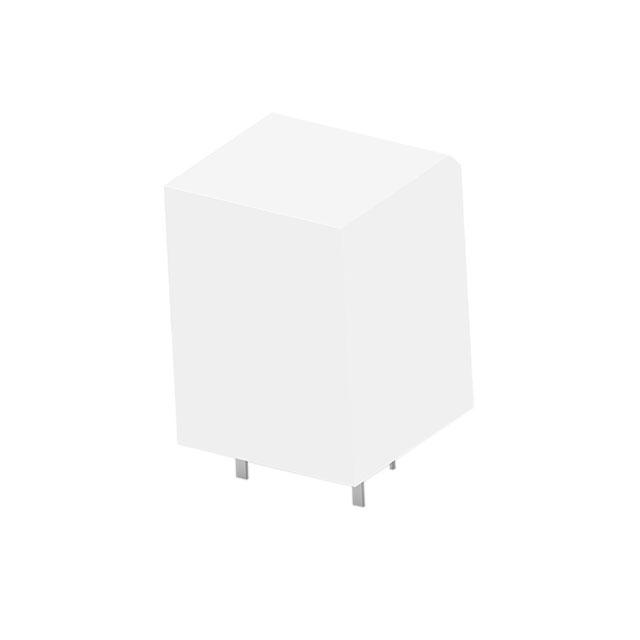

5-1415356-1

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 6A 5V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 6A 5V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Rating (Current)	Coil Voltage	Operate Time	Termination Style	Approval Agency	Contact Material	Release Time	Contact Form	Load - Max Switching [Max]	Mounting Type	Switching Voltage [Max]	Must Release Voltage	Must Operate Voltage	Coil Resistance	Coil Current	Seal Rating	Relay Type	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Coil Insulation
TE Connectivity Potter & Brumfield Relays 5-1415356-1	6 A	5 VDC	10 ms	PC Pin	cURus VDE	Silver Nickel (AgNi)	20 ms	SPST-NO (1 Form A)	2400 VA	Through Hole	400 VAC	0.5 VDC	3.75 VDC	70 Ohms	71.4 mA	Sealed - Flux Protection	General Purpose	Non Latching	-20 C	105 ░C
TE Connectivity Potter & Brumfield Relays 8-1415356-1	6 A		10 ms	PC Pin	cURus VDE	Silver Nickel (AgNi)	20 ms	SPDT (1 Form C)	2400 VA	Through Hole	400 VAC	0.6 VDC	4.5 VDC	100 Ohms	60 mA		General Purpose	Non Latching	-20 C	105 ░C	Class F
TE Connectivity Potter & Brumfield Relays 2-1415356-1	6 A	12 VDC	10 ms	PC Pin	cURus VDE	Silver Nickel (AgNi)	20 ms	SPST-NO (1 Form A)	2400 VA	Through Hole	400 VAC	1.2 VDC	9 VDC	400 Ohms	30 mA		General Purpose	Non Latching	-20 C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1050	$ 2.13

General part information

General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole

Technical documentation and resources

No documents available
