BG1203-B045-00S-00

Obsolete

NMB TECHNOLOGIES

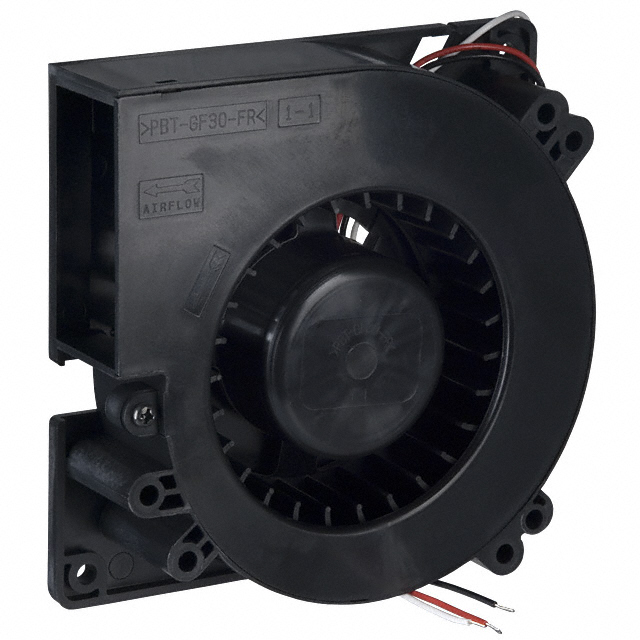

FAN BLOWER 120X32MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet BG Series Part Numbering Guide +2

BG1203-B045-00S-00

Obsolete

NMB TECHNOLOGIES

FAN BLOWER 120X32MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet BG Series Part Numbering Guide +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BG1203-B045-00S-00

Air Flow	33.2 CFM
Air Flow	0.93 mł/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	930 mA
Fan Type	Blower
Features	Speed Sensor (Tach)
Lifetime @ Temp.	100000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	54 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	11.2 W
RPM	2650 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	120 mm
Size / Dimension [z]	120 mm
Static Pressure	260 Pa
Static Pressure	1.044 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	269.89 g
Weight	0.595 lb
Width [y]	32 mm

BG1203 Series

Part	Air Flow	Air Flow	RPM	Features	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	Current Rating (Amps)	Power (Watts)	Fan Type	Noise	Weight	Weight	Approval Agency	Material - Frame	Static Pressure	Static Pressure	Material - Blade	Width [y]	Voltage Range [Max]	Voltage Range [Min]	Termination	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Bearing Type	Lifetime @ Temp.
NMB TECHNOLOGIES BG1203-B045-00S-00	33.2 CFM	0.93 mł/min	2650 RPM	Speed Sensor (Tach)	Square/Rounded	120 mm	120 mm	12 VDC	930 mA	11.2 W	Blower	54 dB	269.89 g	0.595 lb	CE CSA UL VDE	Plastic	260 Pa	1.044 in H2O	Plastic	32 mm	13.8 VDC	6 VDC	3 Wire Leads	-10 °C	-10 °C	60 °C	60 °C	Ball	100000 Hrs
NMB TECHNOLOGIES BG1203-B055-00L-00	33.2 CFM	0.93 mł/min	2650 RPM	Locked Rotor Sensor	Square/Rounded	120 mm	120 mm	24 VDC	480 mA	11.5 W	Blower	55 dB	269.89 g	0.595 lb	CE CSA UL VDE	Plastic	260 Pa	1.044 in H2O	Plastic	32 mm	13.8 VDC	6 VDC	3 Wire Leads	-10 °C	-10 °C	60 °C	60 °C	Ball	100000 Hrs
NMB TECHNOLOGIES BG1203-B044-000-00	28.2 CFM	0.79 mł/min	2250 RPM		Square/Rounded	120 mm	120 mm	12 VDC	650 mA	7.8 W	Blower	48.5 dB(A)	269.89 g	0.595 lb	CE CSA UL VDE	Plastic	175 Pa	0.702 in H2O	Plastic	32 mm	13.8 VDC	6 VDC	2 Wire Leads	-10 °C	-10 °C	60 °C	60 °C	Ball	100000 Hrs
NMB TECHNOLOGIES BG1203-B054-000-00	28.2 CFM	0.79 mł/min	2250 RPM		Square/Rounded	120 mm	120 mm	24 VDC		7.2 W	Blower	52 dB	269.89 g	0.595 lb	CE CSA UL VDE	Plastic	174.4 Pa	0.7 in H2O	Plastic	32 mm	13.8 VDC	6 VDC	2 Wire Leads	-10 °C	-10 °C	60 °C	60 °C	Ball	100000 Hrs
NMB TECHNOLOGIES BG1203-B053-00L-00	26.1 CFM	0.731 m³/min	2100 RPM	Locked Rotor Sensor	Square/Rounded	120 mm	120 mm	24 VDC	0.25 A	6 W	Blower		269.89 g	0.595 lb	CE CSA UL VDE	Plastic	145 Pa	0.582 in H2O	Plastic	32 mm	13.8 VDC	6 VDC	3 Wire Leads	-10 °C	-10 °C	60 °C	60 °C	Ball	100000 Hrs
NMB TECHNOLOGIES BG1203-B043-00S-00	26.1 CFM	0.731 m³/min	2100 RPM	Speed Sensor (Tach)	Square/Rounded	120 mm	120 mm	12 VDC	480 mA	5.78 W	Blower	46.5 dB	269.89 g	0.595 lb	CE CSA UL VDE	Plastic	145 Pa	0.582 in H2O	Plastic	32 mm	13.8 VDC	6 VDC	3 Wire Leads	-10 °C	-10 °C	60 °C	60 °C	Ball	100000 Hrs
NMB TECHNOLOGIES BG1203-B042-00S-00	22.2 CFM	0.622 m³/min	1800 RPM	Speed Sensor (Tach)	Square/Rounded	120 mm	120 mm	12 VDC		3.6 W	Blower	41.5 dB	269.89 g	0.595 lb	CE CSA UL VDE	Plastic	100 Pa	0.401 in H2O	Plastic	32 mm	13.8 VDC	6 VDC	3 Wire Leads	-10 °C	-10 °C	60 °C	60 °C	Ball	100000 Hrs
NMB TECHNOLOGIES BG1203-B054-00L-00	28.2 CFM	0.79 mł/min	2250 RPM	Locked Rotor Sensor	Square/Rounded	120 mm	120 mm	24 VDC		7.2 W	Blower	52 dB	269.89 g	0.595 lb	CE CSA UL VDE	Plastic	174.4 Pa	0.7 in H2O	Plastic	32 mm	13.8 VDC	6 VDC	3 Wire Leads	-10 °C	-10 °C	60 °C	60 °C	Ball	100000 Hrs
NMB TECHNOLOGIES BG1203-B043-00L-00	26.1 CFM	0.731 m³/min	2100 RPM	Locked Rotor Sensor	Square/Rounded	120 mm	120 mm	12 VDC	480 mA	5.78 W	Blower	46.5 dB	269.89 g	0.595 lb	CE CSA UL VDE	Plastic	145 Pa	0.582 in H2O	Plastic	32 mm	13.8 VDC	6 VDC	3 Wire Leads	-10 °C	-10 °C	60 °C	60 °C	Ball	100000 Hrs
NMB TECHNOLOGIES BG1203-B045-000-00	33.2 CFM	0.93 mł/min	2650 RPM		Square/Rounded	120 mm	120 mm	12 VDC	930 mA	11.2 W	Blower	54 dB	269.89 g	0.595 lb	CE CSA UL VDE	Plastic	260 Pa	1.044 in H2O	Plastic	32 mm	13.8 VDC	6 VDC	2 Wire Leads	-10 °C	-10 °C	60 °C	60 °C	Ball	100000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.60
		10	$ 22.47
		30	$ 21.62
		60	$ 20.19
		120	$ 18.63
		270	$ 18.34
		510	$ 18.20

Description

General part information

BG1203 Series

Fan Blower 12VDC Square/Rounded - 120mm L x 120mm H Ball 33.2 CFM (0.930m³/min) 3 Wire Leads
