896-044-522-808
ActiveEDAC Inc.

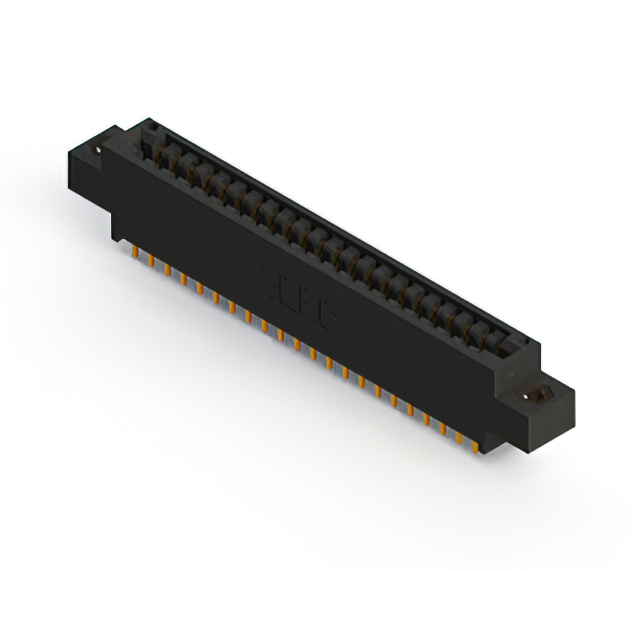

CONN EDGE DUAL FMALE 44POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-044-522-808
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 44POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-044-522-808 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 44 |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
896-044 Series
...
| Part | Read Out | Contact Type | Number of Positions | Pitch [x] | Pitch [x] | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Termination | Gender | Card Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Finish | Number of Rows | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | Cantilever | 44 | 0.125 in | 3.18 mm | Copper Alloy | 125 °C | -40 °C | 44 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder | Female | Non Specified - Single Edge | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 10 Áin | 0.25 Ám | Black | Gold | 1 | Polyphenylene Sulfide (PPS) |
EDAC Inc. | Single | Cantilever | 44 | 0.125 in | 3.18 mm | Copper Alloy | 125 °C | -40 °C | 44 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder | Female | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Black | Gold | 1 | Polyphenylene Sulfide (PPS) | ||
EDAC Inc. | Single | Cantilever | 44 | 0.125 in | 3.18 mm | Copper Alloy | 125 °C | -40 °C | 44 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Wire Wrap | Female | Non Specified - Single Edge | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 10 Áin | 0.25 Ám | Black | Gold | 1 | Polyphenylene Sulfide (PPS) |
EDAC Inc. | Single | Cantilever | 44 | 0.125 in | 3.18 mm | Copper Alloy | 125 °C | -40 °C | 44 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder | Female | Non Specified - Single Edge | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 10 Áin | 0.25 Ám | Black | Gold | 1 | Polyphenylene Sulfide (PPS) |
EDAC Inc. | Single | Cantilever | 44 | 0.125 in | 3.18 mm | Copper Alloy | 125 °C | -40 °C | 44 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder | Female | Non Specified - Single Edge | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 10 Áin | 0.25 Ám | Black | Gold | 1 | Polyphenylene Sulfide (PPS) |
EDAC Inc. | Dual | Cantilever | 44 | 0.125 in | 3.18 mm | Copper Alloy | 125 °C | -40 °C | 22 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder | Female | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Black | Gold | 2 | Polyphenylene Sulfide (PPS) | ||
EDAC Inc. | Dual | Cantilever | 44 | 0.125 in | 3.18 mm | Copper Alloy | 125 °C | -40 °C | 22 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder | Female | Non Specified - Dual Edge | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 10 Áin | 0.25 Ám | Black | Gold | 2 | Polyphenylene Sulfide (PPS) |
EDAC Inc. | Dual | Cantilever | 44 | 0.125 in | 3.18 mm | Copper Alloy | 125 °C | -40 °C | 22 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder | Female | Non Specified - Dual Edge | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 10 Áin | 0.25 Ám | Black | Gold | 2 | Polyphenylene Sulfide (PPS) |
EDAC Inc. | Dual | Cantilever | 44 | 0.125 in | 3.18 mm | Copper Alloy | 125 °C | -40 °C | 22 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder | Female | Non Specified - Dual Edge | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 10 Áin | 0.25 Ám | Black | Gold | 2 | Polyphenylene Sulfide (PPS) |
EDAC Inc. | Single | Cantilever | 44 | 0.125 in | 3.18 mm | Copper Alloy | 125 °C | -40 °C | 44 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Solder | Female | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Black | Gold | 1 | Polyphenylene Sulfide (PPS) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 64.31 | |
Description
General part information
896-044 Series
44 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
