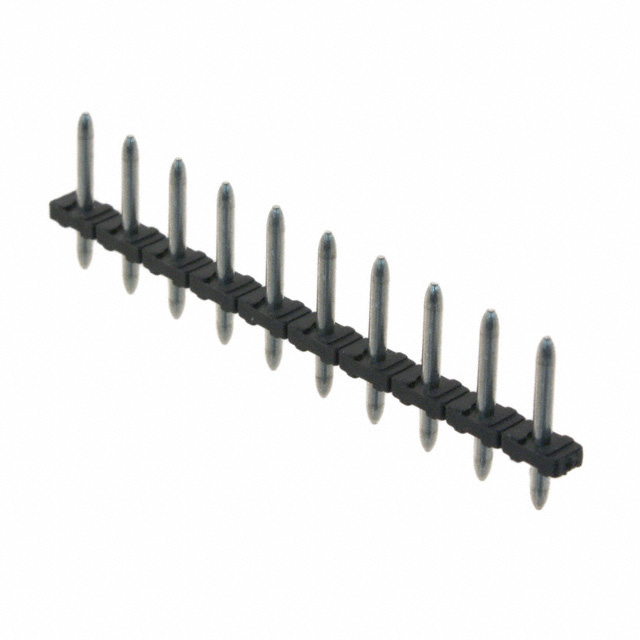

1933260

Active

Phoenix Contact

HEADERS & WIRE HOUSINGS 10 POS 5MM PITCH THRU HOLE PIN STRIP

Search across all available documentation for this part.

Active

Phoenix Contact

HEADERS & WIRE HOUSINGS 10 POS 5MM PITCH THRU HOLE PIN STRIP

Technical Specifications

Parameters and characteristics for this part

Specification	1933260

Color	Black
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - IEC	12 A
Current - UL	16 A
Header Orientation	Vertical
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.079 in
Insulation Height	2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	10
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	10
Termination Style	Solder
Type	Header, Male Pins, Unshrouded
Voltage - IEC	400 V
Voltage - UL	300 V

Headers & Wire Housings 16 Pos 3.5mm pitch Thru Hole Pin Strip

Part	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Voltage - UL	Mounting Type	Number of Levels	Color	Contact Mating Finish	Material Flammability Rating	Number of Positions	Voltage - IEC	Positions Per Level	Housing Material	Termination Style	Current - IEC	Current - UL	Header Orientation	Contact Tail Length	Contact Tail Length	Type
Phoenix Contact 1945229	13 mm	0.512 in	3.5 mm	0.138 in	300 V	Through Hole	1	Black	Tin	UL94 V-0	15	250 V	15	Polyamide (PA) Nylon	Solder	8 A	10 A	Vertical	0.15 in	3.81 mm	Header Male Pins Unshrouded
Phoenix Contact 1704424	11.2 mm	0.441 "	5 mm	0.197 in	300 V	Through Hole	1	Black	Tin	UL94 V-0	12	400 V	12	Polyamide (PA) Nylon	Solder	13.5 A	10 A	90° Right Angle	0.138 in	3.5 mm	Header Male Pins Partial Shroud
Phoenix Contact 1704547	11.2 mm	0.441 "	5 mm	0.197 in	300 V	Through Hole	1	Black	Tin	UL94 V-0	8	400 V	8	Polyamide (PA) Nylon	Solder	13.5 A	10 A	Vertical	0.138 in	3.5 mm	Header Male Pins Partial Shroud
Phoenix Contact 1933309	2 mm	0.079 in	5 mm	0.197 in	300 V	Through Hole	1	Black	Tin	UL94 V-0	14	400 V	14	Polyamide (PA) Nylon	Solder	12 A	16 A	Vertical	0.138 in	3.5 mm	Header Male Pins Unshrouded
Phoenix Contact 1933260	2 mm	0.079 in	5 mm	0.197 in	300 V	Through Hole	1	Black	Tin	UL94 V-0	10	400 V	10	Polyamide (PA) Nylon	Solder	12 A	16 A	Vertical	0.138 in	3.5 mm	Header Male Pins Unshrouded
