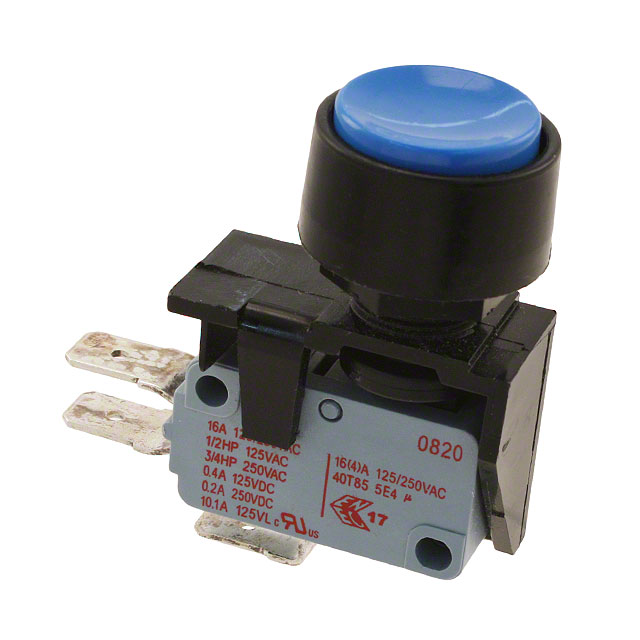

3832510MBL

Active

BULGIN LIMITED

SWITCH PUSHBUTTON SPDT 16A 250V

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH PUSHBUTTON SPDT 16A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	3832510MBL

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Blue
Current Rating (Amps)	16 A
Ingress Protection	IP40
Mounting Type	Panel Mount, Rear
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Type	Standard
Voltage Rating - AC	250 V

Part	Termination Style	Ingress Protection	Voltage Rating - AC	Switch Function	Actuator Marking	Mounting Type	Actuator Type	Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Circuit	Color - Actuator/Cap
BULGIN LIMITED 3832510MBL	Quick Connect - 0.250" (6.3mm)	IP40	250 V	On-Mom	No Marking	Panel Mount Rear	Button Round	Standard	12.7 mm	16 A	SPDT	Blue
BULGIN LIMITED 3832510PR	Quick Connect - 0.250" (6.3mm)	IP40	250 V	On-Mom	No Marking	Panel Mount Rear	Button Round	Standard	12.7 mm	16 A	SPDT	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.70

General part information

Pushbutton Switch SPDT Standard Panel Mount, Rear

Technical documentation and resources
