Q-2403Y000H012i

Active

Amphenol Custom Cable

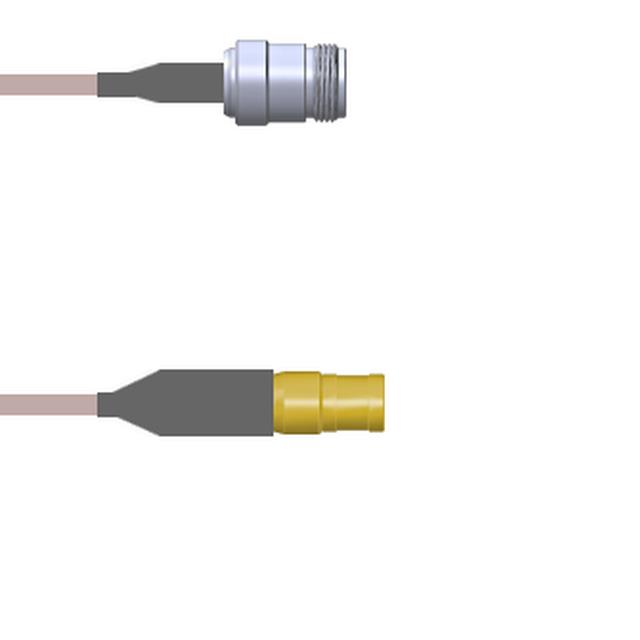

CBL ASSY SMB-NTYPE PLUG-JACK 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2403Y000H012i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLUG-JACK 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2403Y000H012i

1st Connector	SMB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2403Y0 Series

Part	Color	Style	Features	2nd Contact Gender	2nd Connector Mounting Type	Overall Impedance	1st Contact Gender	Cable Type	2nd Connector	Frequency - Max [Max]	Length	Length	1st Connector	1st Connector Mounting Type	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-2403Y000H012i	Copper	SMB to N-Type	Shielded	Female	Free Hanging (In-Line)	50 Ohms	Female	RG-142	N-Type Jack	4 GHz	12 "	304.8 mm	SMB Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2403Y000H024i	Copper	SMB to N-Type	Shielded	Female	Free Hanging (In-Line)	50 Ohms	Female	RG-142	N-Type Jack	4 GHz	24 "	609.6 mm	SMB Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2403Y000H018i	Copper	SMB to N-Type	Shielded	Female	Free Hanging (In-Line)	50 Ohms	Female	RG-142	N-Type Jack	4 GHz			SMB Plug	Free Hanging (In-Line)	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2403Y000H084i	Copper	SMB to N-Type	Shielded	Female	Free Hanging (In-Line)	50 Ohms	Female	RG-142	N-Type Jack	4 GHz	84 in	2.1 m	SMB Plug	Free Hanging (In-Line)			7 ft
Amphenol Custom Cable Q-2403Y000H2.5M	Copper	SMB to N-Type	Shielded	Female	Free Hanging (In-Line)	50 Ohms	Female	RG-142	N-Type Jack	4 GHz	98.4 in	2.5 m	SMB Plug	Free Hanging (In-Line)			8.2 '
Amphenol Custom Cable Q-2403Y000H072i	Copper	SMB to N-Type	Shielded	Female	Free Hanging (In-Line)	50 Ohms	Female	RG-142	N-Type Jack	4 GHz	72 in	1.8 m	SMB Plug	Free Hanging (In-Line)			6 ft
Amphenol Custom Cable Q-2403Y000H009i	Copper	SMB to N-Type	Shielded	Female	Free Hanging (In-Line)	50 Ohms	Female	RG-142	N-Type Jack	4 GHz	9 "	228.6 mm	SMB Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2403Y000H048i	Copper	SMB to N-Type	Shielded	Female	Free Hanging (In-Line)	50 Ohms	Female	RG-142	N-Type Jack	4 GHz	48 in	1200 mm	SMB Plug	Free Hanging (In-Line)			4 ft
Amphenol Custom Cable Q-2403Y000H002M	Copper	SMB to N-Type	Shielded	Female	Free Hanging (In-Line)	50 Ohms	Female	RG-142	N-Type Jack	4 GHz	78.7 in	2 m	SMB Plug	Free Hanging (In-Line)			6.6 ft
Amphenol Custom Cable Q-2403Y000H.75M	Copper	SMB to N-Type	Shielded	Female	Free Hanging (In-Line)	50 Ohms	Female	RG-142	N-Type Jack	4 GHz	29.53 "	750 mm	SMB Plug	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 99.36
		25	$ 97.43
		50	$ 95.51
		100	$ 93.58
		250	$ 91.66

Description

General part information

Q-2403Y0 Series

Cable Assembly Coaxial SMB to N-Type RG-142 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
