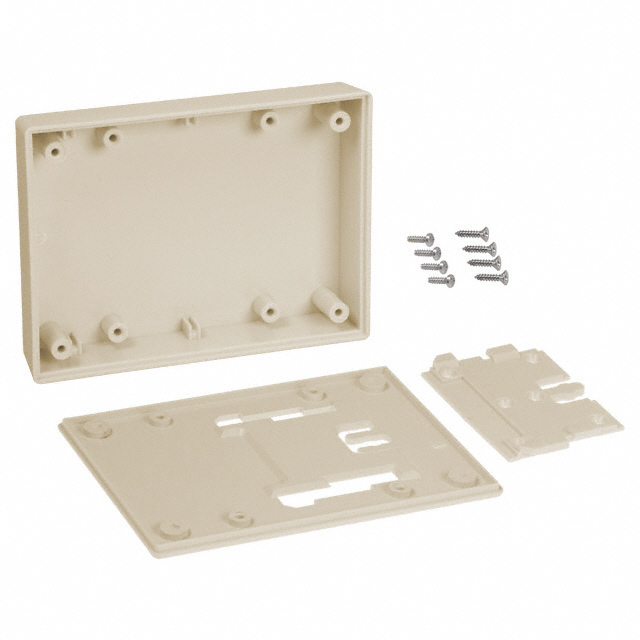

031W,AL

Active

Serpac

BOX ABS ALMOND 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 4.38"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	031W,AL

Area (L x W)	14.2 in²
Area (L x W)	92 cm˛
Color	Almond
Container Type	Box
Features	PCB Supports, Wall Mount
Height [z]	22.86 mm
Height [z]	0.9 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.15 lbs
Weight	68.04 g

Part	Material Flammability Rating	Color	Material	Weight	Weight	Features	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Ratings	Container Type	Thickness	Thickness	Design
Serpac 031W,AL	UL94 HB	Almond	Plastic ABS	0.15 lbs	68.04 g	PCB Supports Wall Mount	22.86 mm	0.9 in	14.2 in²	92 cm˛	IP40 NEMA 1	Box	2.54 mm	0.1 in
Serpac 031W,BK	UL94 HB	Black	Plastic ABS	0.15 lbs	68.04 g	PCB Supports Wall Mount	22.86 mm	0.9 in	14.2 in²	92 cm˛	IP40 NEMA 1	Box	2.54 mm	0.1 in	Cover Included Hand Held
Serpac 031W,GY	UL94 HB	Gray	Plastic ABS	0.15 lbs	68.04 g	PCB Supports Wall Mount	22.86 mm	0.9 in	14.2 in²	92 cm˛	IP40 NEMA 1	Box	2.54 mm	0.1 in
Serpac 031WI,AL	UL94 HB	Almond	Plastic ABS	0.15 lbs	68.04 g	PCB Supports Wall Mount	22.86 mm	0.9 in	14.2 in²	92 cm˛	IP40 NEMA 1	Box	2.54 mm	0.1 in
Serpac 031WI,BK	UL94 HB	Black	Plastic ABS	0.15 lbs	68.04 g	PCB Supports Wall Mount	22.86 mm	0.9 in	14.2 in²	92 cm˛	IP40 NEMA 1	Box	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.80

General part information

Box Plastic, ABS Almond 4.380" L x 3.250" W (111.25mm x 82.55mm) X 0.900" (22.86mm)

Technical documentation and resources

No documents available
