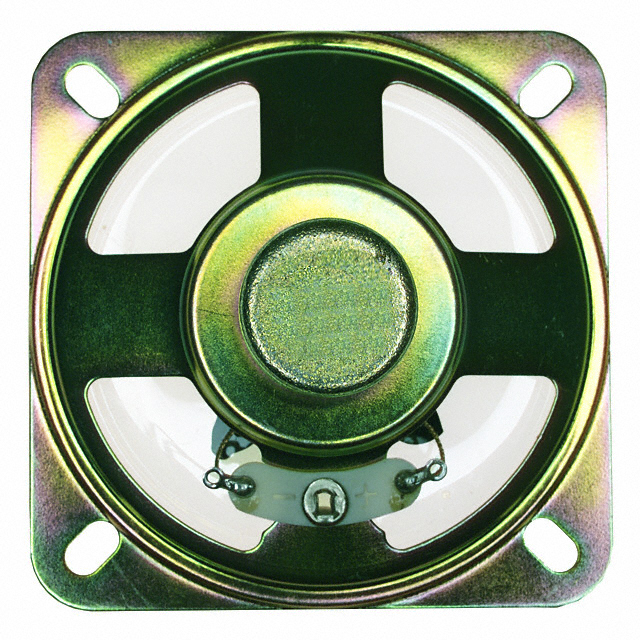

GA0506M

Active

CUI Devices

SPEAKER 8OHM 250MW TOP PORT 79DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 250MW TOP PORT 79DB

Technical Specifications

Parameters and characteristics for this part

Specification	GA0506M

Efficiency - dBA	79 dBA
Efficiency - Testing	500 mm, 250 mW
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	500 Hz
Frequency Range [Max]	10 kHz
Frequency Range [Min]	500 Hz
Height - Seated (Max) [Max]	18.5 mm
Height - Seated (Max) [Max]	0.728 in
Impedance	8 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Alnico (AlNiCo)
Port Location	Top
Power - Max [Max]	500 mW
Power - Rated	0.25 W
Shape	Square Frame, Round
Size / Dimension [x]	50 mm
Size / Dimension [x]	1.969 in
Size / Dimension [y]	1.969 in
Size / Dimension [y]	50 mm
Technology	Magnetic
Termination	Solder Eyelet(s)
Type	General Purpose

Part	Frequency Range [Max]	Frequency Range [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material - Magnet	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Material - Cone	Type	Port Location	Efficiency - Testing	Power - Rated	Frequency - Self Resonant	Technology	Efficiency - Type	Efficiency - dBA	Termination	Shape	Impedance	Power - Max [Max]
CUI Devices GA0506M	10 kHz	500 Hz	1.969 in	50 mm	50 mm	1.969 in	Alnico (AlNiCo)	18.5 mm	0.728 in	Polyester Polyethylene Terephthalate (PET)	General Purpose	Top	250 mW 500 mm	0.25 W	500 Hz	Magnetic	Sound Pressure Level (SPL)	79 dBA	Solder Eyelet(s)	Round Square Frame	8 Ohms	500 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms General Purpose Speaker 250 mW 500 Hz ~ 10 kHz Top Round, Square Frame
