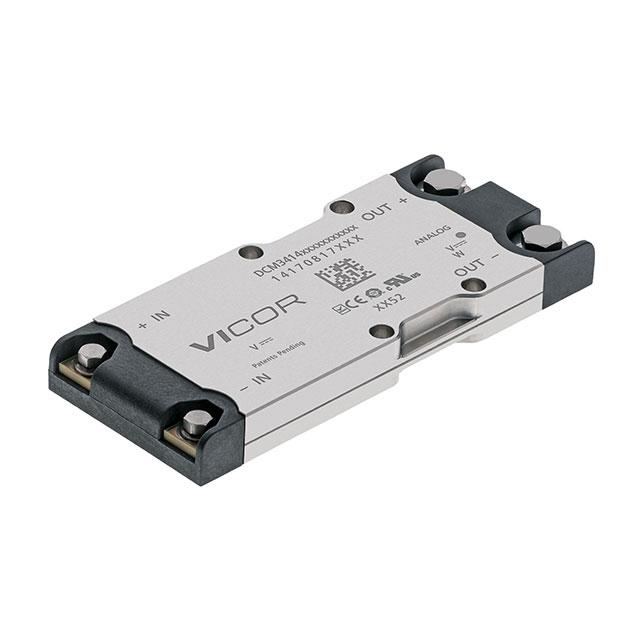

DCM3414B75H06A6T09

Active

Vicor Corporation

DC DC CONVERTER 160W

Deep-Dive with AI

Search across all available documentation for this part.

DCM3414B75H06A6T09

Active

Vicor Corporation

DC DC CONVERTER 160W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCM3414B75H06A6T09

null

DCM3414 Series

Part	Mounting Type	Voltage - Output 1	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Features	Efficiency	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Number of Outputs	Type	Voltage - Input (Min) [Min]	Voltage - Isolation	Voltage - Input (Max) [Max]	Power (Watts)	Approval Agency	Standard Number
Vicor Corporation DCM3414B50M53C2C05
Vicor Corporation DCM3414B75H06A6T09
Vicor Corporation DCM3414B75H31C2C05	Through Hole	28 V	9-DIP Module	-20 °C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	91.8 %	11.43 A	35.5 mm	9.3 mm	3.38 in	1.4 in	85.9 mm	0.37 in	ITE (Commercial)	1	Isolated Module	36 V	2250 VDC	75 V
Vicor Corporation DCM3414V50M17C2T01	Chassis Mount	15 V		-40 °C	100 °C		92.2 %	21.33 A	35.5 mm	9.3 mm	3.38 in	1.4 in	85.9 mm	0.37 in	ITE (Commercial)	1	Enclosed	16 V		50 V	320 W	CE cTUVus
Vicor Corporation DCM3414V50M31C2M01	Chassis Mount	28 V		-55 °C	125 °C		93.3 %	11.43 A	35.5 mm	9.3 mm	3.38 in	1.4 in	85.9 mm	0.37 in	ITE (Commercial)	1	Enclosed	16 V	1.5 kV	50 V	320 W	CE cTUVus cURus	60950-1
Vicor Corporation DCM3414B50M13C2M09
Vicor Corporation DCM3414V75H13C2T01	Chassis Mount	12 V		-40 °C	125 °C		91.9 %	26.67 A	35.5 mm	9.3 mm	3.38 in	1.4 in	85.9 mm	0.37 in	ITE (Commercial)	1	Enclosed	36 V	2250 VDC	75 V	320 W	CE cTUVus cURus	60950-1
Vicor Corporation DCM3414B50M06A8M05
Vicor Corporation DCM3414V50M26C2T01	Chassis Mount	24 V		-40 °C	125 °C		90.7 %	13.33 A	35.5 mm	9.3 mm	3.38 in	1.4 in	85.9 mm	0.37 in	ITE (Commercial)	1	Enclosed	16 V		50 V	320 W	CE
Vicor Corporation DCM3414B50M13C2C05	Through Hole	12 V	9-DIP Module	-20 C	100 °C	OCP OVP Remote On/Off UVLO	91.5 %	26.67 A	35.5 mm	9.3 mm	3.39 in	1.4 in	86 mm	0.37 in	ITE (Commercial)	1	Isolated Module	16 V	1.5 kV	50 V	320 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 799.83

Description

General part information

DCM3414 Series

DC DC Converter Output - Input

Documents

Technical documentation and resources

No documents available
