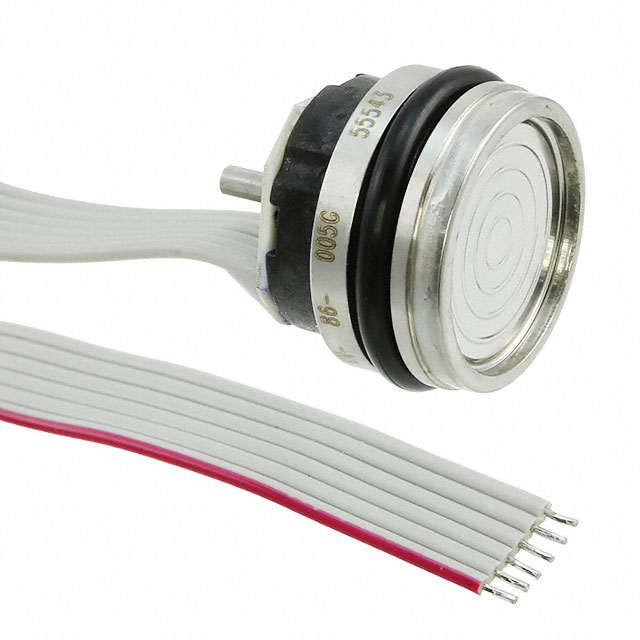

86-005G-RT

Active

TE Connectivity Measurement Specialties

SENSOR 5PSIG 0.1V

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR 5PSIG 0.1V

Technical Specifications

Parameters and characteristics for this part

Part	Port Style	Accuracy	Package / Case	Termination Style	Output [Min]	Output [Max]	Maximum Pressure	Maximum Pressure [Max]	Pressure Type	Output Type	Applications	Features	Operating Pressure	Operating Pressure	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Measurement Specialties 86-005G-RT	No Port	0.2 %	Cylinder	Cable with Connector	0 mV	100 mV	103.42 kPa	15 PSI	Vented Gauge	Wheatstone Bridge	Board Mount	Temperature Compensated	34.47 kPa	5 PSI	-20 C	70 °C
TE Connectivity Measurement Specialties 86-005G-R	No Port	0.2 %	Cylinder	Cable with Connector	0 mV	100 mV	103.42 kPa	15 PSI	Vented Gauge	Wheatstone Bridge	Board Mount	Temperature Compensated	34.47 kPa	5 PSI	-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	60	$ 64.40

General part information

Pressure Sensor 5PSI (34.47kPa) Vented Gauge 0 mV ~ 100 mV Cylinder
